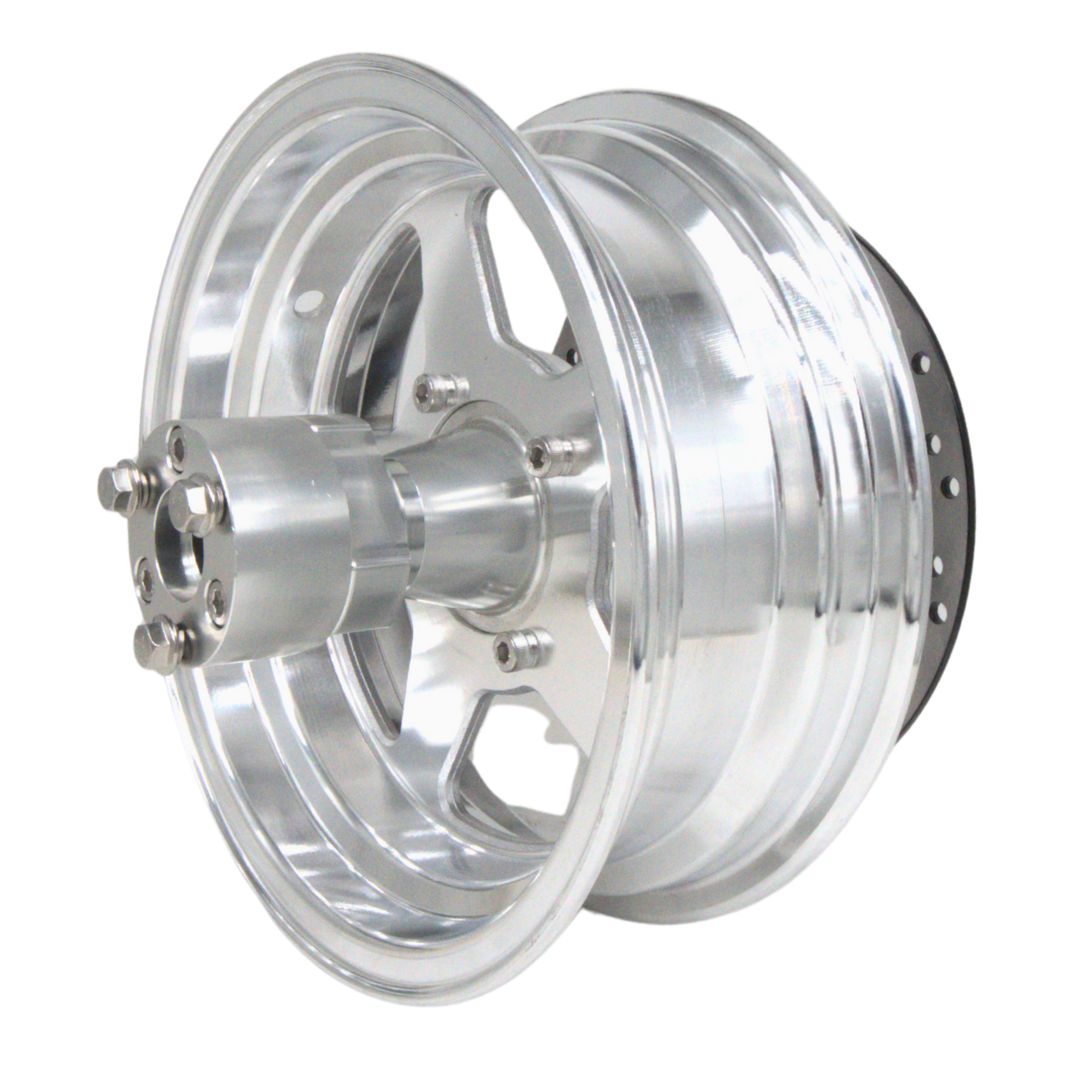

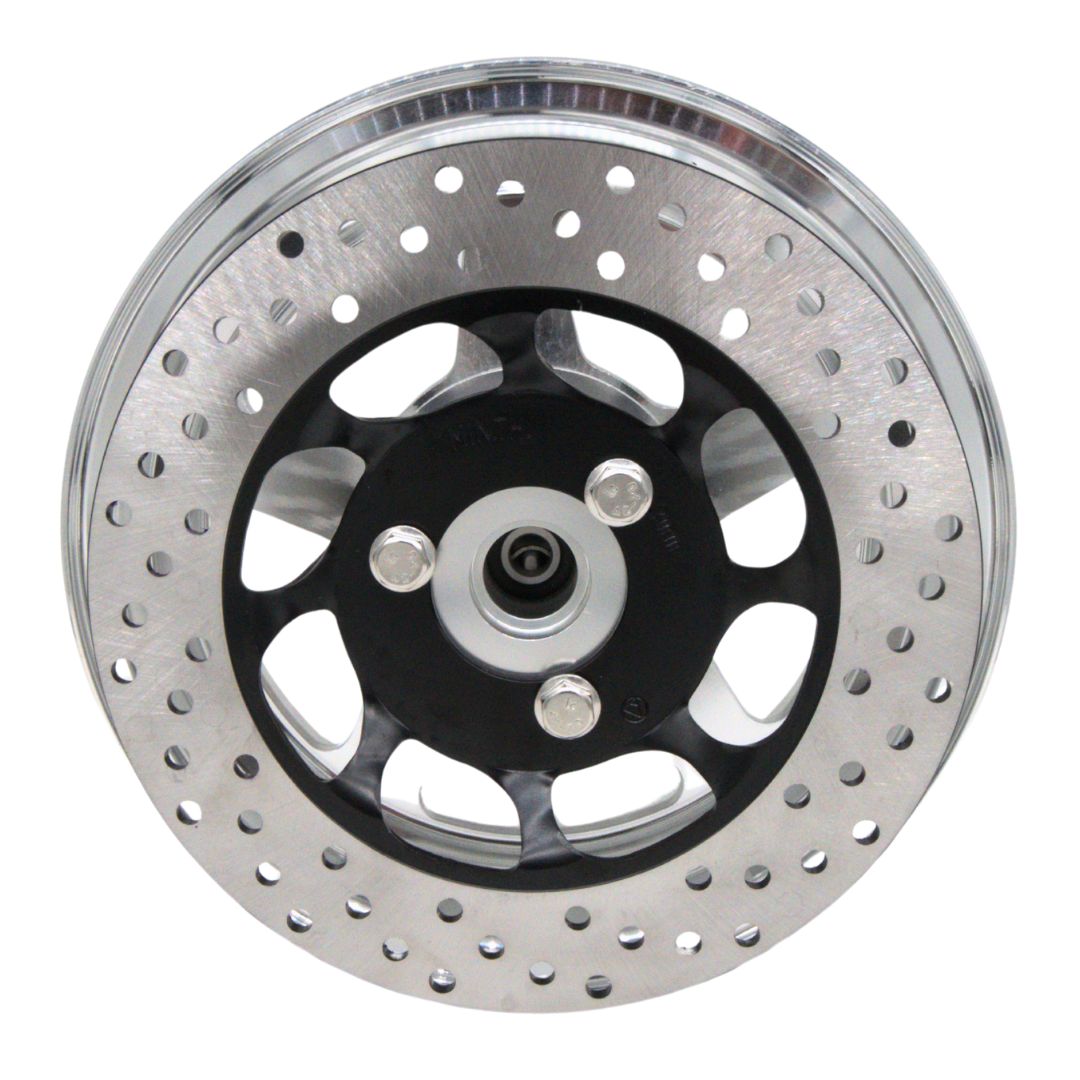

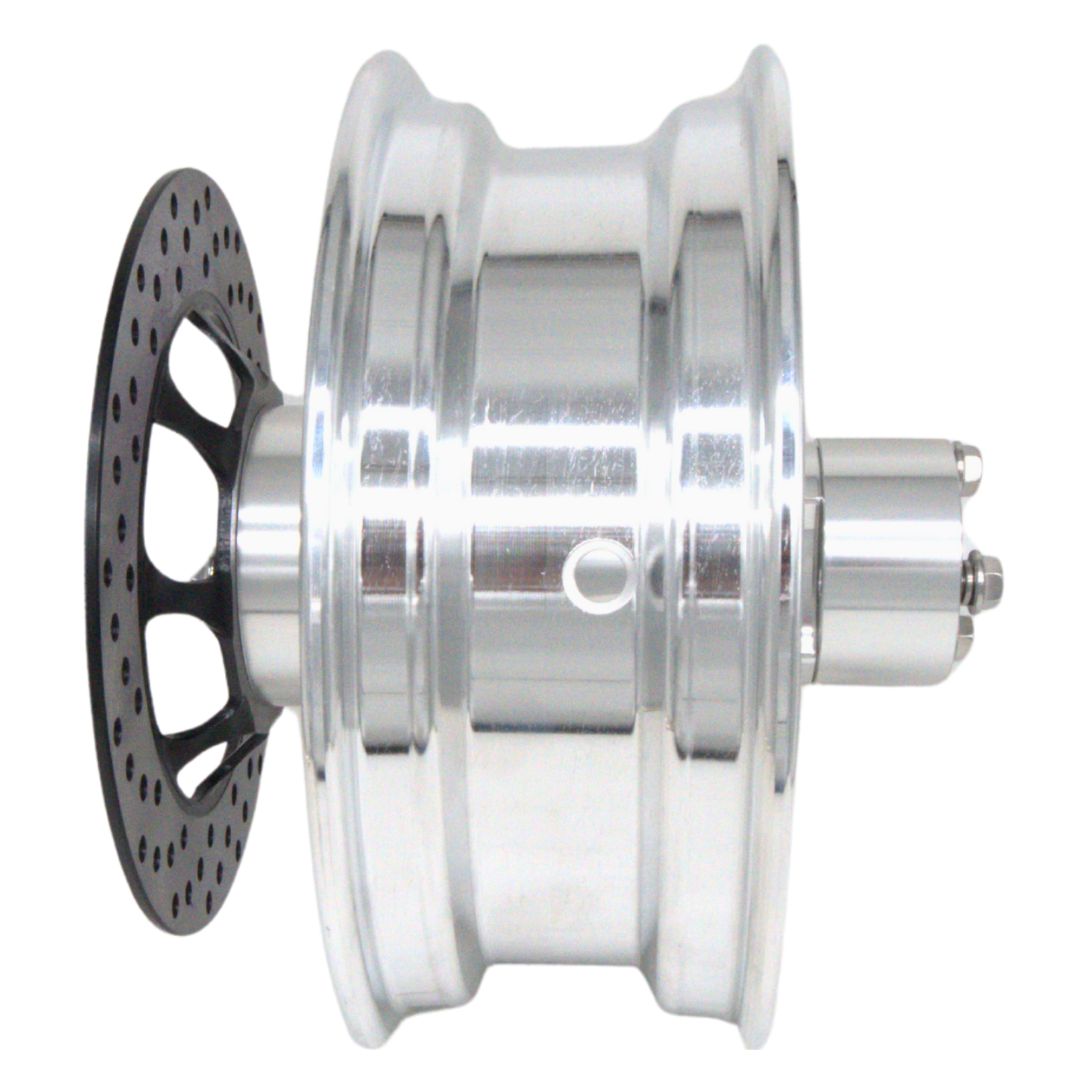

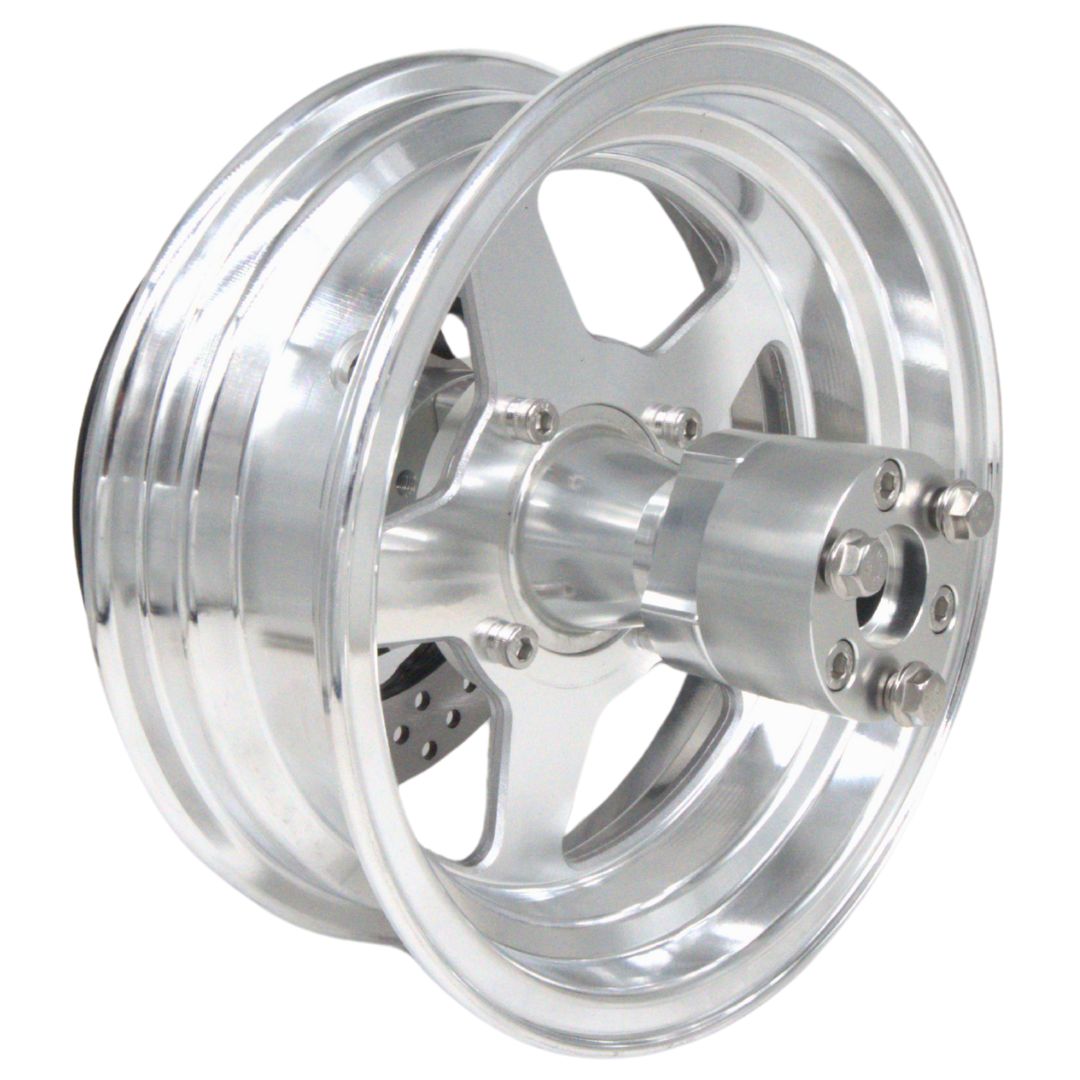

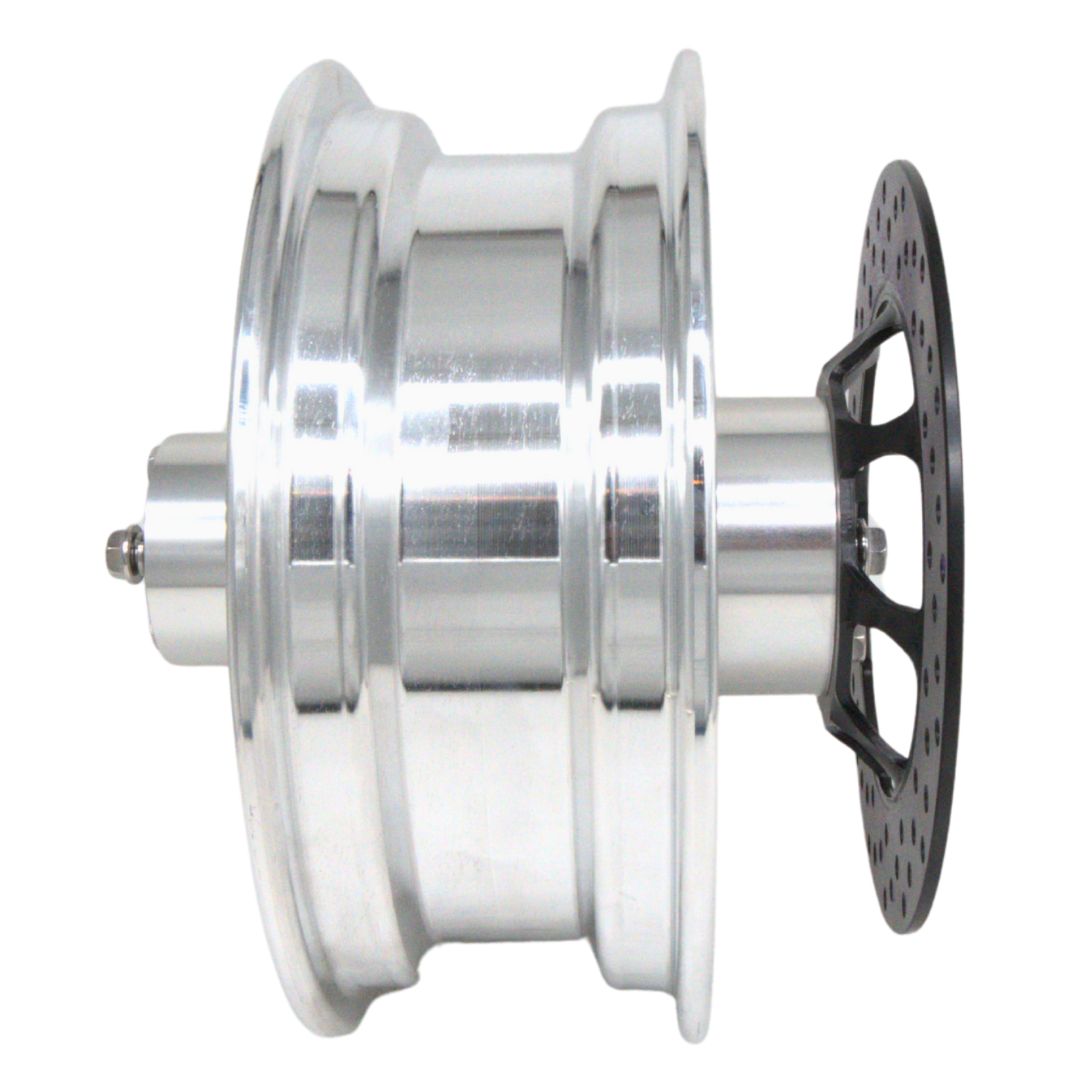

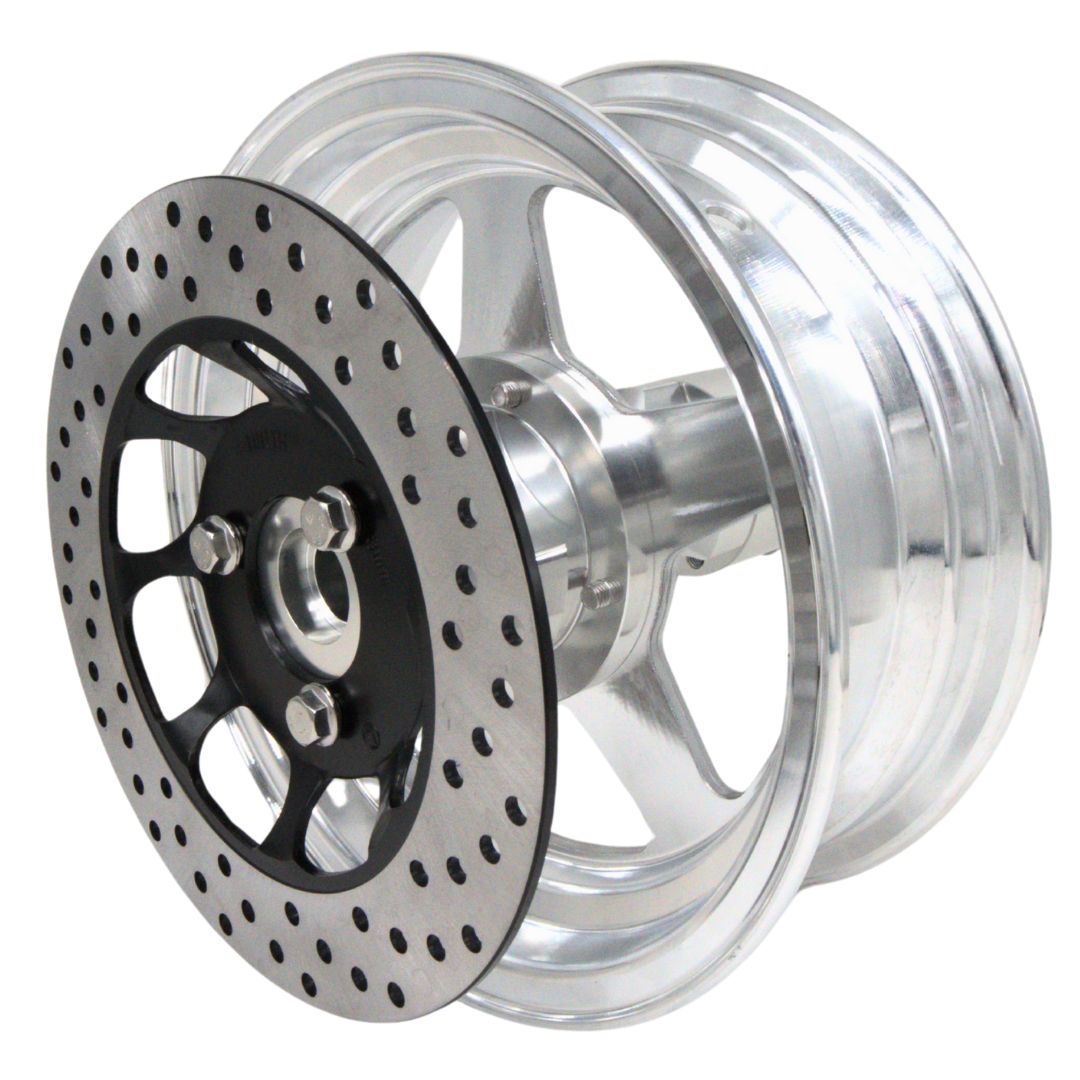

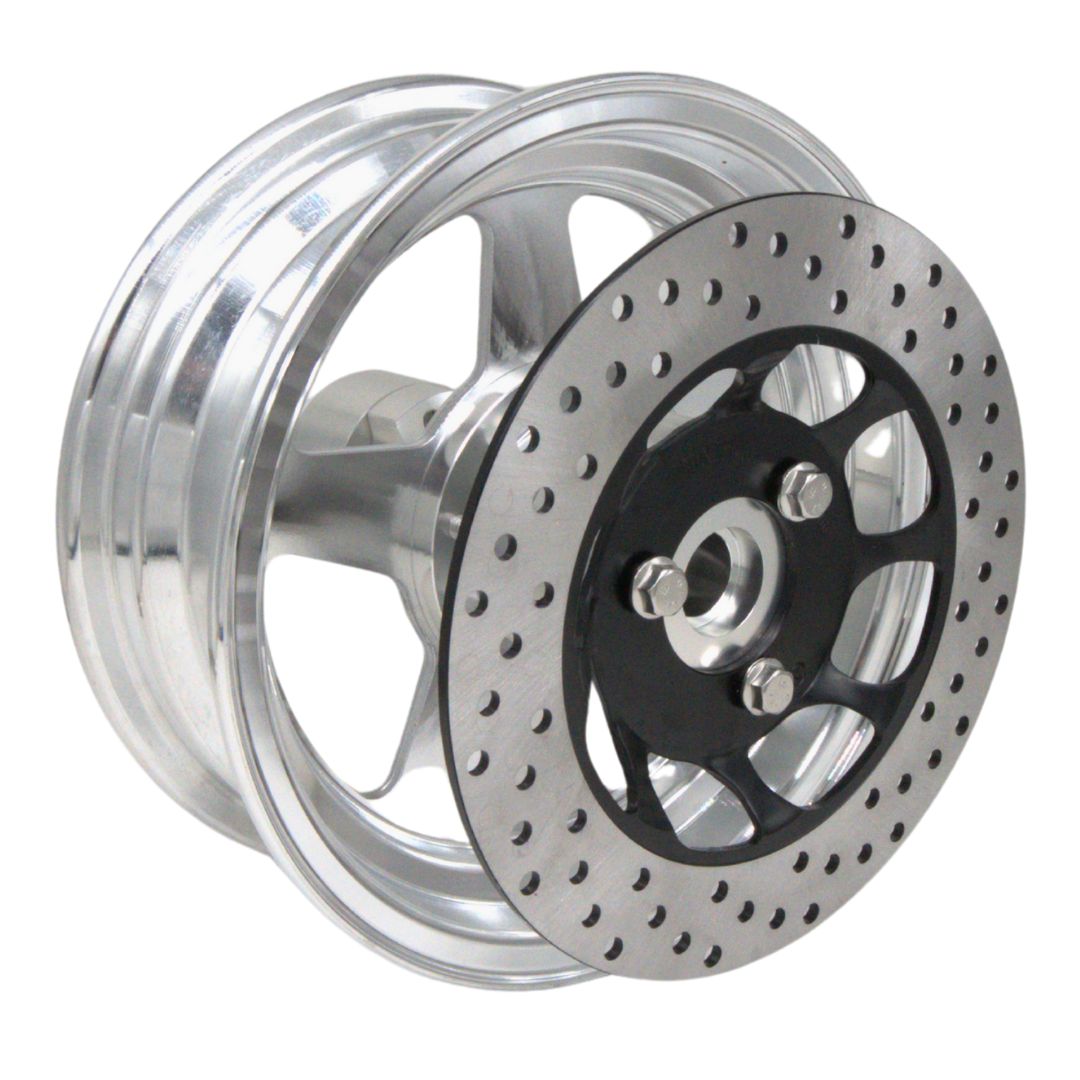

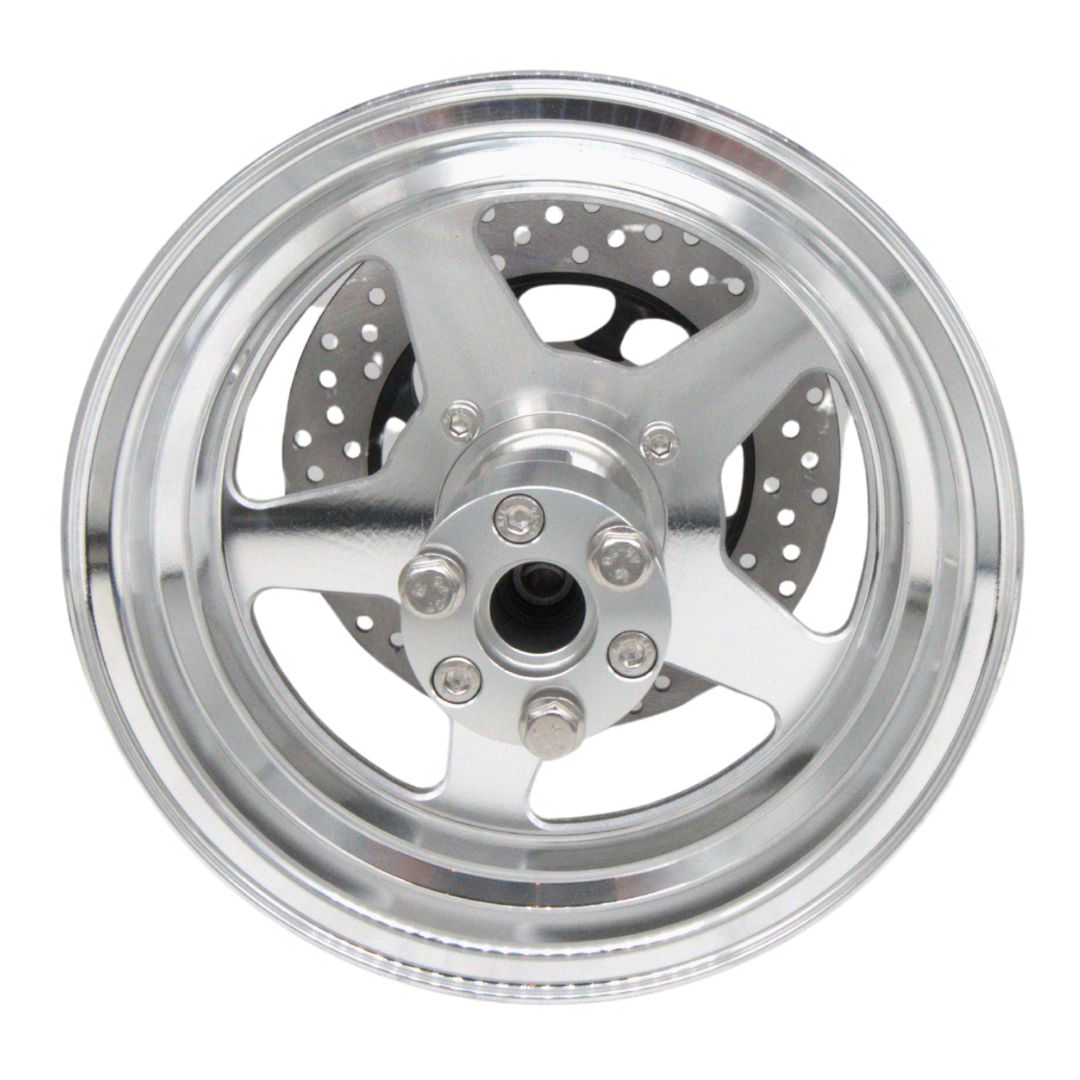

10" GPS Machined Aluminum Rear Wheel For Fat Tire Minibikes

We are thrilled to help you up your minibike game with our 10" GPS Machined Aluminum Rear Wheel For Fat Tire Minibikes. The perfect upgrade for cruising, racing, and impressing the homies. This set up was designed specifically for the Trailmaster MB200 series, the Mega Moto 212, and some Coleman minibikes but will fit a wide range of large minibikes. Please pay attention to included items, recommended items, and fitment.

Includes:

• 10" machined aluminum rear wheel and hub
• Brake disc spacer
• Sprocket spacer
• 220mm off-set brake disc
• 6201 bearings in the original hub (bearings for spacers are not included)
• Crush sleeve in the original hub
• Valve stem

Dimensions:

• 10" x 3.5" Wheel (bead to bead)
• Brake Disc Diameter - 220mm
• Sprocket Adapter 3 Bolt Pattern - 2.200" (sprocket adapter not included)
• Overall Width (brake disc to sprocket / sprocket carrier) - Roughly 9.1" including hardware stick out.

Recommended Items:

• GPS Sprocket Adapter 2 - GPSUSA2
• Split Sprocket
• 1 Piece steel sprocket
• 12mm ID bearing
• 15mm ID bearing

Fitment:

• The bolt on spacers accept 32mm OD bearings (not included). You must run bearings in the spacers or risk bending the axles.
• 12mm ID bearing
• 15mm ID bearing
• Trailmaster MB200 series
• Brake bracket must be heightened by drilling a second axle hole below the original. Stay tuned for our bolt on fix!
• Make your own axle spacers / washers. We sell a wide variety of axle spacers in various lengths.
• Mega Moto 212
• Brake bracket must be modified. The GPS solution coming shortly.
• Make your own axle spacers / washers. We sell a wide variety of axle spacers in various lengths.
• You can run 4 bearings or just the outside 2 bearings in the spacers. 4 is recommended but it is easier to make your crush sleeve with 2 bearings.
• Wheel and hub come assembled but the bolts are not tightened. Blue loctite and lock washers are recommended.
• Blue loctite is strongly recommended on all bolts.
