FRP Moto FX125 125cc Dirt Bike – 17"/14" Big Wheel, 4-Speed Manual
- SKU:
- FRP-FX125BG
Color: *
FRP FX125 Style Option: *
Overview
Product Description
FX125 BIG WHEEL: 17-INCH FRONT / 14-INCH REAR
This listing is specifically for the taller Big Wheel FX125. It has a 33.9-inch seat height and 13.2 inches of ground clearance. Riders wanting a lower, more compact motorcycle should consider the FX125 Small Wheel with 14-inch/12-inch wheels.
$399 FIXED LTL FREIGHT SHIPPING
A fixed $399 freight charge per bike applies to eligible delivery addresses in the contiguous United States. California, Alaska, Hawaii, U.S. territories, international destinations, and other excluded or difficult-to-service locations are not eligible for this offer. See the freight-delivery section below for important details.
FRP FX125 Big Wheel 125cc Dirt Bike
The FRP Moto FX125 Big Wheel is a full-size youth and adult-oriented recreational dirt bike powered by a Zongshen 125cc four-stroke engine. Its 17-inch front and 14-inch rear wheels, 33.9-inch seat height, 13.2 inches of ground clearance, hydraulic disc brakes, four-speed manual transmission, electric starter, and backup kick starter make it a substantial step up from automatic mini bikes and smaller pit bikes.
The Big Wheel chassis provides more ground clearance, a taller riding position, and improved rollover capability on ruts, roots, rocks, and uneven trails compared with the FX125 Small Wheel. It is best suited to riders who properly fit its taller seat height and are ready to learn or already understand clutch-and-gear operation.
Choose the value-focused Basic model or upgrade to the Pro model for adjustable hand levers, a digital dashboard, a headlight with high and low beam, and an adjustable rear shock. Both versions use the same 125cc engine, four-speed transmission, Big Wheel chassis, hydraulic brakes, and electric-plus-kick starting system.
Why Choose the FX125 Big Wheel?
- Zongshen 125cc four-stroke engine: Delivers a manufacturer-rated 8.7 horsepower for recreational trail and off-road riding.
- Four-speed manual transmission: A true clutch-operated, four-up gearbox helps riders develop full-size motorcycle skills.
- Electric and kick start: Convenient push-button starting with a mechanical backup starter.
- 17-inch/14-inch wheel package: Larger wheels roll over rough terrain more effectively than the FX125 Small Wheel.
- 13.2 inches of ground clearance: Provides additional clearance for uneven trails and off-road obstacles.
- Hydraulic disc brakes: Dual-piston front and single-piston rear calipers provide controlled braking performance.
- Full-length seat: Allows the rider to shift body position while cornering, climbing, descending, and navigating changing terrain.
- Basic and Pro choices: Select the equipment level that fits the rider’s needs and budget.
- Up to 265-pound rated load: A stronger, larger platform than many entry-level youth dirt bikes.

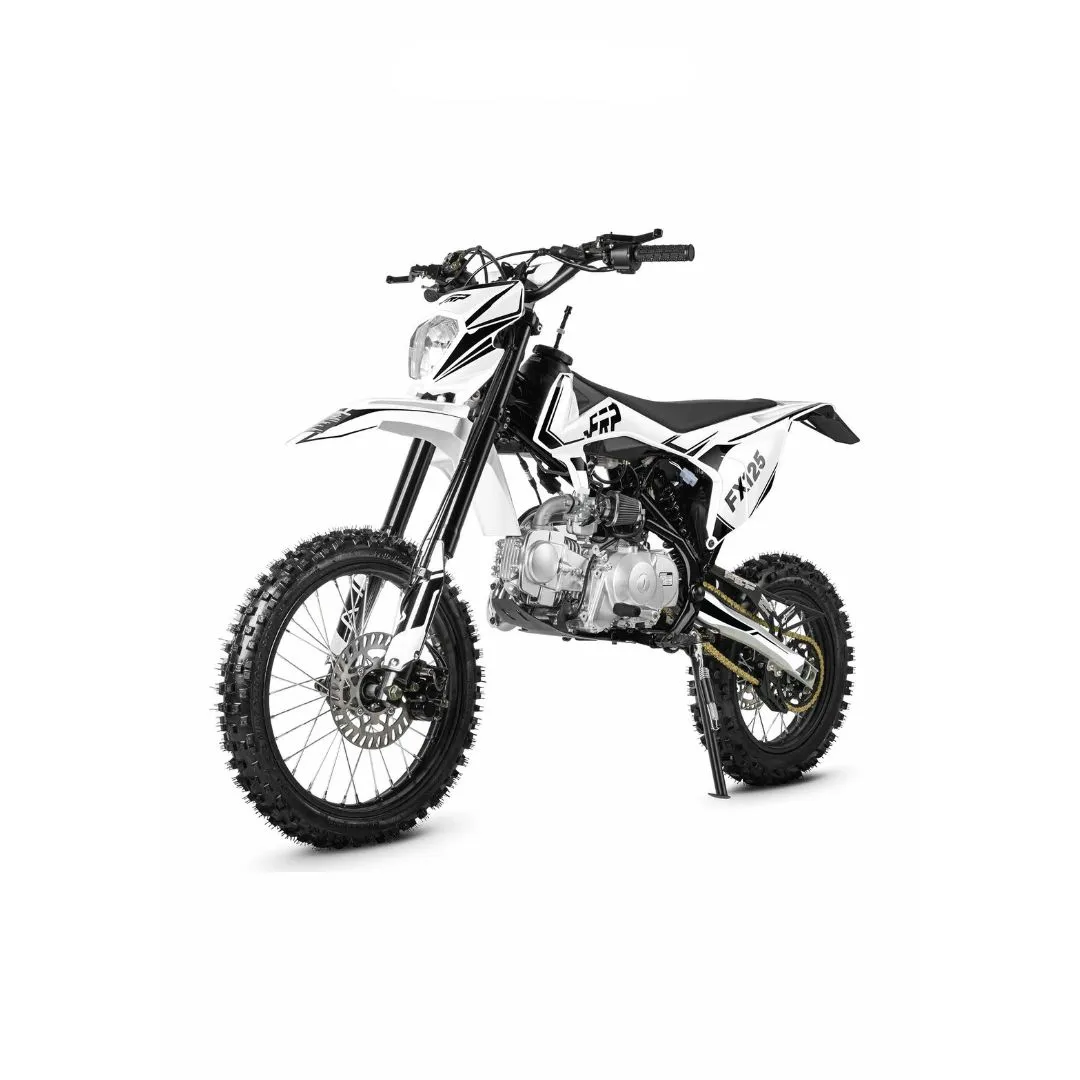

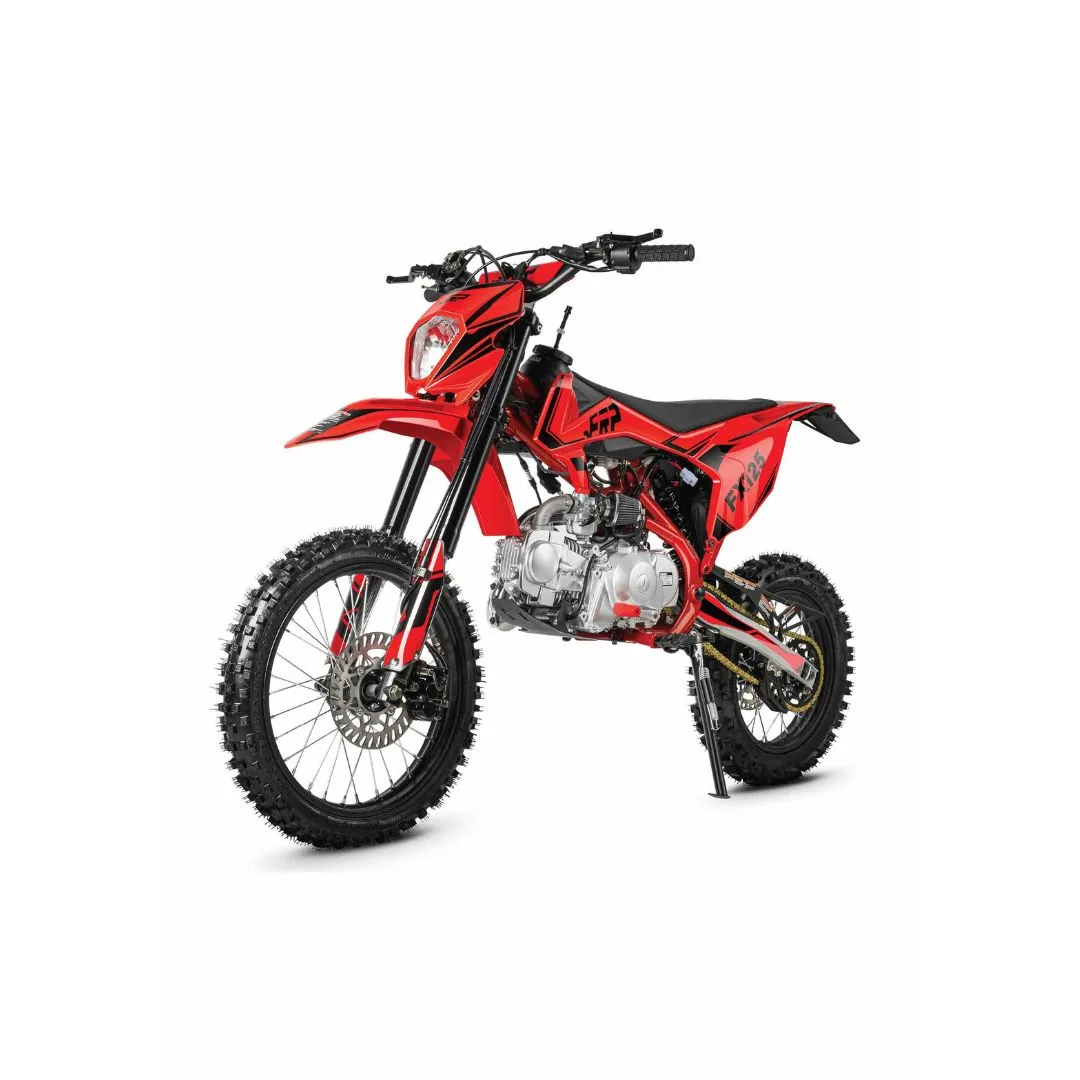

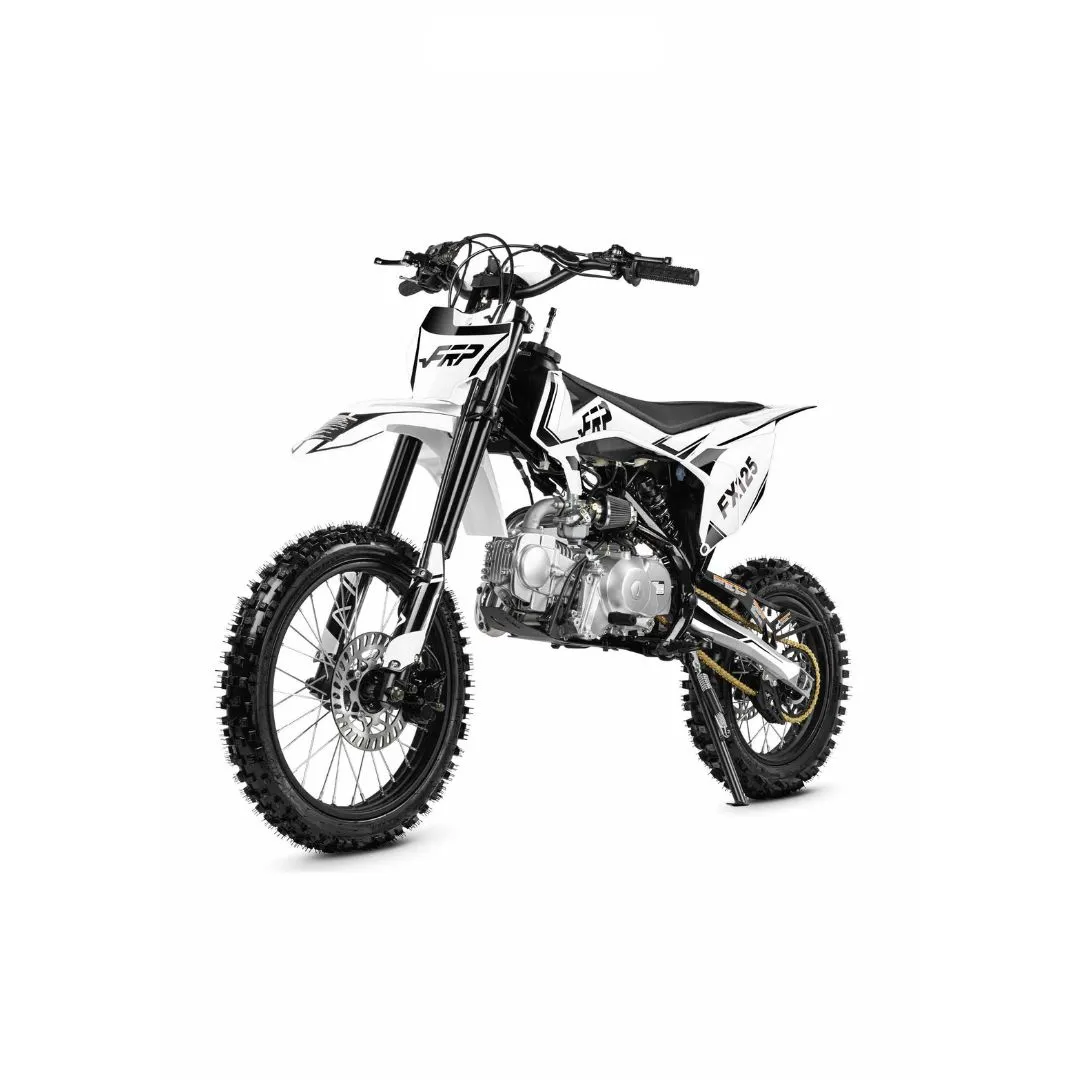

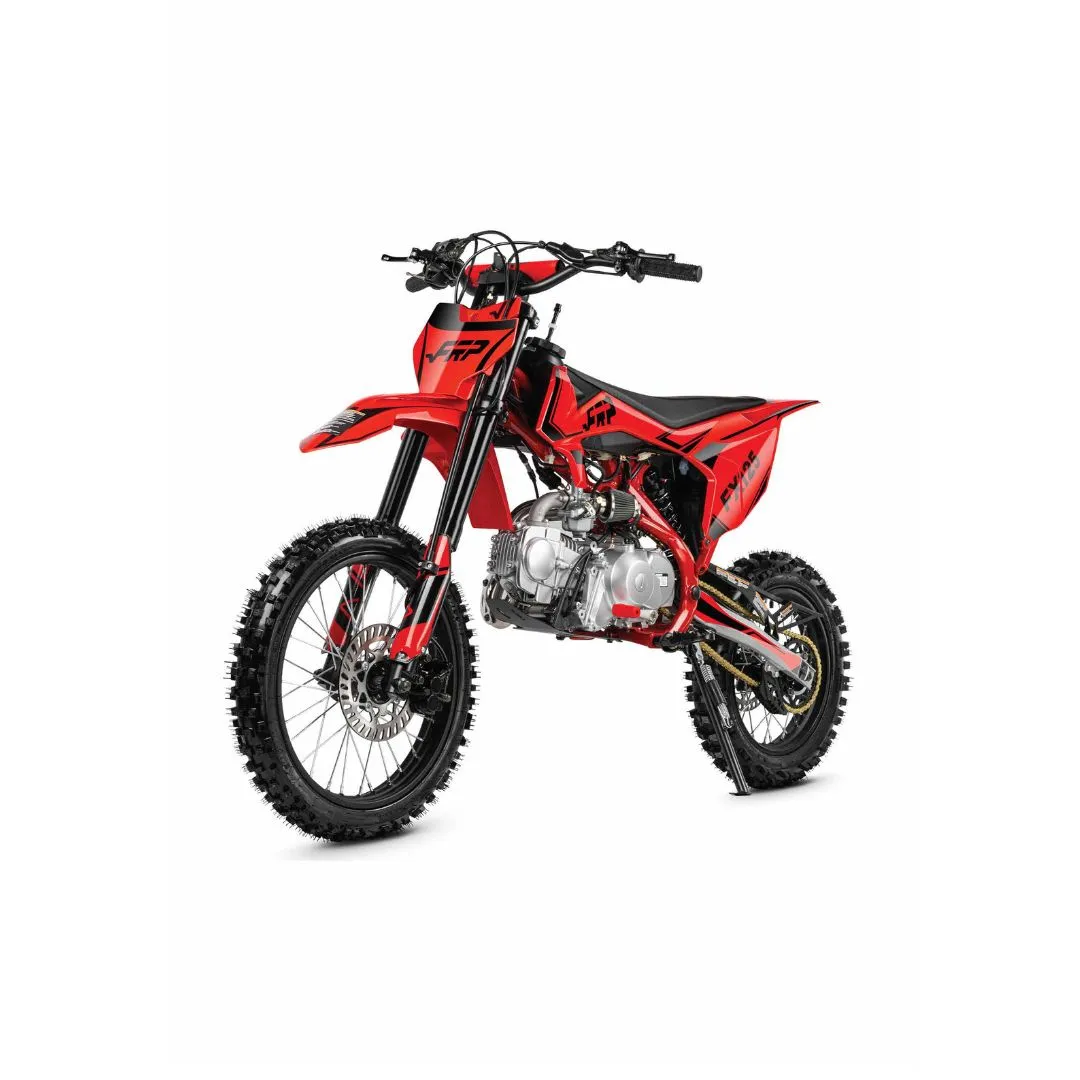

Basic vs. Pro: Which FX125 Big Wheel Should You Buy?
| Feature | Big Wheel Basic | Big Wheel Pro |
|---|---|---|
| Price | $999.99 | $1,099.99 |
| Engine and transmission | 125cc, 4-speed manual | 125cc, 4-speed manual |
| Wheel size | 17-inch front / 14-inch rear | 17-inch front / 14-inch rear |
| Hand levers | Standard | 6-position adjustable |
| Dashboard | Not equipped | Full digital dashboard |
| Headlight | Not equipped | High/low beam |
| Rear shock | 310mm fixed shock | 310mm adjustable shock |
| Best choice for | Best value and essential riding equipment | Riders wanting added adjustability, instrumentation, and lighting |
Our recommendation: Select the Basic when price and mechanical simplicity are the priorities. Select the Pro if the rider will benefit from adjustable lever reach, an adjustable rear shock, an instrument display, and a headlight. The Pro headlight does not make the motorcycle street legal.
FX125 Big Wheel vs. FX125 Small Wheel
| Specification | FX125 Big Wheel | FX125 Small Wheel |
|---|---|---|
| Wheel size | 17-inch front / 14-inch rear | 14-inch front / 12-inch rear |
| Seat height | 33.9 inches | 28.1 inches |
| Ground clearance | 13.2 inches | 11.8 inches |
| Approximate weight | 163.9 pounds | 150 pounds |
| Rear shock length | 310mm | 260mm |
| Front brake caliper | Dual-piston hydraulic | Single-piston hydraulic |
| Drive chain | #428 | #420 |
| Riding character | Taller, more stable, and better suited to rougher terrain | Lower, lighter, and easier to manage at lower speeds |
| Basic price | $999.99 | $799.99 |
| Pro price | $1,099.99 | $899.99 |
Both wheel configurations use the same 125cc engine, four-speed manual transmission, electric-plus-kick starting system, manufacturer-estimated top speed, and 265-pound maximum rated load. Choose by rider fit, experience, and terrain rather than age alone. A rider should be able to reach the controls, support the motorcycle when stopped, operate the clutch and brakes correctly, and manage its weight without assistance.
Who Is the FX125 Big Wheel For?
The FX125 Big Wheel is intended for a physically capable rider who fits its 33.9-inch seat height and has sufficient maturity, judgment, coordination, and training to operate a clutch-equipped off-road motorcycle. The owner’s manual recommends riders be at least 16 years old. Age alone does not determine safe fit.
This is a good choice for recreational riders moving up from a smaller pit bike or automatic mini bike, as well as newer riders who want to learn a conventional manual clutch and four-speed gearbox. It is not appropriate for a child who cannot securely support the motorcycle, comfortably reach every control, or understand clutch, throttle, shifting, and braking operation.
Technical Specifications
| Category | Specification |
|---|---|
| Model | FRP Moto FX125 Big Wheel / FX125-F17R14 |
| Engine | Zongshen 125cc, single-cylinder, four-stroke, air-cooled, SOHC |
| Rated power | 8.7 hp / 6.5 kW at 7,500 rpm |
| Rated torque | 8.8 Nm at 5,500 rpm |
| Bore × stroke | 54 × 54.5mm |
| Fuel system | PZ26 carburetor |
| Transmission | Four-speed manual, four-up shift pattern |
| Clutch | Manual wet multi-plate clutch |
| Starting system | Electric start plus kick start |
| Estimated top speed | Up to approximately 56 mph / 90 km/h under ideal conditions |
| Manufacturer-stated range | Approximately 143 miles under favorable test conditions |
| Fuel capacity | Approximately 1.2 gallons / 4.5 liters |
| Fuel | Fresh unleaded gasoline; product page states 87 octane or higher, while the supplied manual recommends 90 octane or higher. Follow the instructions supplied with your motorcycle. |
| Engine oil | 10W-40 or 10W-50 motorcycle oil suitable for wet-clutch use; do not use oil labeled Energy Conserving or containing friction modifiers |
| Front wheel and tire | 17-inch wheel; 70/100-17 bias-ply tube-type tire |
| Rear wheel and tire | 14-inch wheel; 90/100-14 bias-ply tube-type tire |
| Cold tire pressure | 15–18 psi front and rear |
| Front brake | Hydraulic disc with dual-piston caliper |
| Rear brake | Hydraulic disc with single-piston caliper |
| Brake fluid | DOT 4 |
| Rear suspension | 310mm fixed shock on Basic; 310mm adjustable shock on Pro |
| Drive chain | #428 chain |
| Seat height | 33.9 inches |
| Ground clearance | 13.2 inches |
| Wheelbase | 49.2 inches |
| Overall dimensions | 70.1 × 30.7 × 44.1 inches |
| Approximate motorcycle weight | 163.9 pounds |
| Maximum rated load | 265 pounds, including rider and carried gear |
| Maximum rated gradient | 28 degrees under suitable conditions |
| Recommended rider age | 16 years and older, subject to rider fit, ability, training, supervision, and local law |
| Use classification | Recreational off-road use only; not street legal |
Top speed, range, hill-climbing ability, and other performance figures are manufacturer estimates—not guarantees. Actual results vary with rider weight, elevation, temperature, terrain, tire pressure, gearing, break-in, maintenance, wind, fuel, and riding style.
What Is Included?
- One FRP FX125 Big Wheel dirt bike in the selected Basic or Pro configuration
- 17-inch front and 14-inch rear wheel package
- Owner’s manual and documentation supplied with the motorcycle
- Manufacturer-supplied setup tools and hardware, where applicable
Important: Promotional accessories, riding gear, gloves, goggles, hydration packs, backpacks, or bonus items shown or offered on FRP Moto’s direct-to-consumer website are not included unless they are expressly listed by GoPowerSports as part of this offer. A helmet and other required riding gear must be purchased separately.
Assembly and First-Ride Preparation
This dirt bike is shipped partially assembled in a freight crate. Final assembly, inspection, adjustment, fluid verification, and pre-delivery preparation are required before the engine is started or the motorcycle is ridden. Mechanical knowledge and motorcycle-specific tools may be required. GoPowerSports strongly recommends final preparation by a qualified motorcycle or powersports technician.
- Read the complete owner’s manual and all warning labels.
- Inspect the freight crate and motorcycle for concealed or visible shipping damage.
- Complete all required assembly using the correct hardware and torque specifications.
- Confirm engine-oil level before starting. Do not assume the engine contains the correct amount of ride-ready oil.
- Use fresh unleaded gasoline meeting the requirements in the documentation supplied with the motorcycle.
- Inspect brakes, controls, clutch adjustment, chain tension and lubrication, spokes, steering, suspension, fasteners, wiring, fuel system, and tires.
- Set cold tire pressure to the manufacturer-specified range and confirm both tires and tubes are undamaged.
- Test all controls and braking operation at walking speed in a clear, controlled area.
- Follow the manufacturer’s break-in and maintenance instructions.
The manual calls for frequent maintenance appropriate to an off-road motorcycle, including checking the oil before every ride and changing it approximately every 15 riding hours. Severe, wet, dusty, muddy, or high-load use may require service more often.
Freight Delivery Information
- Shipping charge: $399 fixed LTL freight per motorcycle.
- Service area: Eligible addresses in the contiguous United States, excluding California and other restricted or unserviceable destinations.
- Delivery type: Curbside freight delivery unless a different service is specifically shown on the order.
- Appointment: The freight carrier may contact you to arrange delivery. Enter a working telephone number and email address at checkout.
- Unloading: The motorcycle ships in a large, heavy crate. The recipient must have adequate adult help and a safe unloading plan.
- Address access: Limited-access, remote, residential, farm, island, ferry-served, or difficult-to-access locations may require additional arrangements or may not qualify.
Inspect before signing: Examine the crate on every side before accepting delivery. Note punctures, crushing, torn wrapping, broken bands, exposed metal, bent framing, missing pieces, or other damage on the carrier’s delivery receipt.
Take clear photos of the crate and motorcycle before unpacking, retain all packaging, and contact GoPowerSports promptly if damage or missing parts are discovered. Signing without noting visible damage may affect the ability to pursue a freight claim.
Frequently Asked Questions
Is the FX125 Big Wheel automatic?
No. It has a four-speed manual transmission and hand-operated clutch. The rider must learn clutch engagement, shifting, throttle control, and coordinated braking.
Is this the 14-inch/12-inch FX125?
No. This page is for the taller 17-inch front/14-inch rear Big Wheel model. The Small Wheel version is a separate product with a lower 28.1-inch seat height.
Is the FX125 Big Wheel suitable for a beginner?
It can be suitable for a properly sized, trained, and supervised beginner who is ready for a manual clutch. Its speed, weight, seat height, and manual transmission make proper instruction and a controlled learning area essential.
How fast does it go?
FRP lists an estimated top speed of up to approximately 56 mph under ideal conditions. This is not a guaranteed riding speed and should not be treated as a target. Actual speed depends on the rider, terrain, weather, setup, maintenance, elevation, and other conditions.
What is the difference between Basic and Pro?
The Pro adds six-position adjustable hand levers, a full digital dashboard, a high/low-beam headlight, and an adjustable 310mm rear shock. The Basic retains standard levers, has no dashboard or headlight, and uses a fixed 310mm rear shock.
Does the Pro headlight make it street legal?
No. Both Basic and Pro versions are recreational off-road motorcycles and are not street legal.
Can it carry a passenger?
No. The FX125 is designed for one rider only. Never carry a passenger.
Does it arrive ready to ride?
No. It arrives partially assembled in a freight crate and requires final assembly, inspection, adjustment, and pre-ride preparation. Professional setup is strongly recommended.
What fuel should I use?
Use fresh unleaded gasoline. FRP’s current product page states 87 octane or higher, while the supplied Big Wheel owner’s manual recommends 90 octane or higher. Follow the documentation and labels delivered with your motorcycle if they differ from online information.
What warranty applies?
Warranty statements published by a manufacturer may vary by seller, purchase channel, component, and date. Your purchase is governed only by the warranty and return terms posted by GoPowerSports at the time of sale. Contact GoPowerSports before ordering if warranty coverage is an important part of your decision.
Required Safety and Legal Disclosures
WARNING: HIGH-SPEED MOTORIZED OFF-ROAD MOTORCYCLE
- This product is not a toy. Improper operation can cause loss of control, collision, serious injury, or death.
- The owner’s manual recommends operation by riders 16 years of age or older. Rider age does not replace proper physical fit, ability, judgment, training, or adult supervision.
- Adult supervision is required whenever a minor operates or has access to the motorcycle.
- For off-road use only on private property or designated riding areas where motorized vehicles are permitted.
- Not street legal. Do not operate on public roads, streets, sidewalks, parking areas, bicycle lanes, or other locations prohibited by law.
- Not available for sale or shipment to California. Purchaser is responsible for checking all state and local registration, emissions, age, equipment, and operating requirements.
- One rider only. Never carry a passenger.
- Always wear a properly fitted DOT-compliant motorcycle helmet, eye protection, gloves, over-the-ankle boots, long pants, long sleeves, and suitable protective body equipment.
- Obtain professional instruction before operating a manual-clutch motorcycle. Practice only in a level, open area free of traffic and obstacles.
- Never ride beyond the rider’s ability. Do not race, jump, perform wheelies or stunts, or operate recklessly.
- Never operate under the influence of alcohol, cannabis, prescription drugs that impair ability, illegal drugs, or any substance that affects coordination or judgment.
- Inspect the motorcycle before every ride. Do not operate it with damaged, loose, worn, leaking, improperly adjusted, or missing parts.
- Gasoline is extremely flammable. Refuel outdoors with the engine off and cool. Keep away from flames, sparks, cigarettes, heaters, and ignition sources.
- Exhaust contains carbon monoxide. Never start or run the engine inside a garage, trailer, vehicle, shed, or other enclosed or poorly ventilated area.
- The engine, exhaust, brakes, and other components become hot during operation. Avoid contact until completely cool.
- Do not remove, bypass, or alter safety, emissions, exhaust, intake, governor, electrical, or protective equipment. Modifications may increase risk, violate law, and void warranty coverage.
- Specifications, colors, graphics, components, promotional items, pricing, and availability may change without notice. Product images may show optional accessories or a different configuration.
- The purchaser is responsible for assembly, maintenance, safe storage, rider supervision, legal compliance, and determining whether the motorcycle is appropriate for the intended rider and location.
Product Specification
- Weight
- 164lb
