Go-Kart Parts Kit, Single Wheel Drive
- SKU:
- BOD-GKK
In Stock
Overview
Product Description

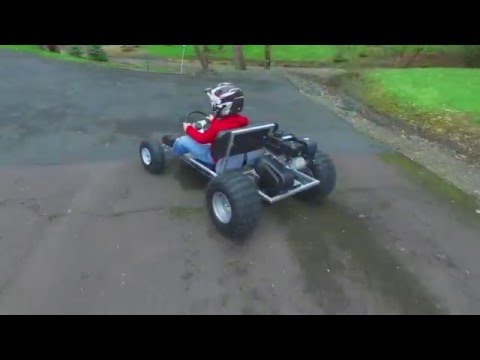

- Build your own homemade go kart using this easy to follow go kart design by KartFab.com. Download the free PDF go kart plans, and learn how to build a go kart.
- Watch the step-by-step video series for the go kart build on YouTube.
- All these parts and the engine are need to complete the go kart frame design from KartFab.com
- Engine, frame and hardware Not Included!
- Kit does not include framing material nor mounting hardware or brake rod (Does have instructions on making brake rod).
- Welding is required
This Kit includes:
|
3 |
KD1456FLA |
14" Off road tire Floater Wheel Assembly |
|
1 |
KD1456dWA |
14" Off road tire Drive Wheel Assembly |
|
1 |
KD60T41 |
60T Drive Wheel Sprocket 420P |
|
1 |
1041GPS-14-0604-00 |
3/4" Bore 10T Centrifugal Clutch 420p |
|
1 |
1246 |
4" Brake Drum |
|
1 |
1036 |
4" Brake Band |
|
1 |
1390-8252 |
Throttle Cable (Manco) |
|
1 |
9502 |
Manco Throttle Return Spring |
|
1 |
9503 |
Manco Brake Return Spring |
|
1 |
P2K.HDPEDALPAIR |
Heavy Duty Gas & Brake Pedals |
|
1 |
12459-4419 |
Kill Switch (1/2") |
|
1 |
KD10SSW |
Steering Wheel |
|
1 |
8277-18" |
18" Generic Tie Rod |
|
1 |
8277-8" |
8" Generic Tie Rod |
|
2 |
1415 |
Left Hand Threading Tie Rod End |
|
2 |
1414 |
Right Hand Threading Tie Rod End |
|
1 |
13788-13789 |
Spindle (L+R pair) 4" center to center |
|
1 |
KDSCC |
Springer Spindle Set |
|
2 |
8515 |
5/8" - 11 Lock Nut |
|
1 |
11359 |
Bench Seat |
All these parts and the engine are need to complete the go kart frame design from KartFab.com
Kit Kart Seat Slider Update
Original 8" seat sliders have been replaced with 11" seat sliders. Three additional steps have been added.
1)Extend seat slider brace to 12" (original was 10"), and space seat slider mounting holes at 11" center to
2) Extend bottom portion of seat frame tubing to 15" (original is 12")
3) add two additional brackets to bottom of seat frame.
a) first (most forward) set of brackets will attach seat, seat frame and seat slider.
b) second set of brackets will attach seat to seat frame 8" from the center of first set of brackets
c) third set of brackets will attach seat slider to seat frame 11" from center of first set of brackets
Product Specification
- Weight
- 62lb
- GTIN
- 662652716052
- UPC
- 662652716052
