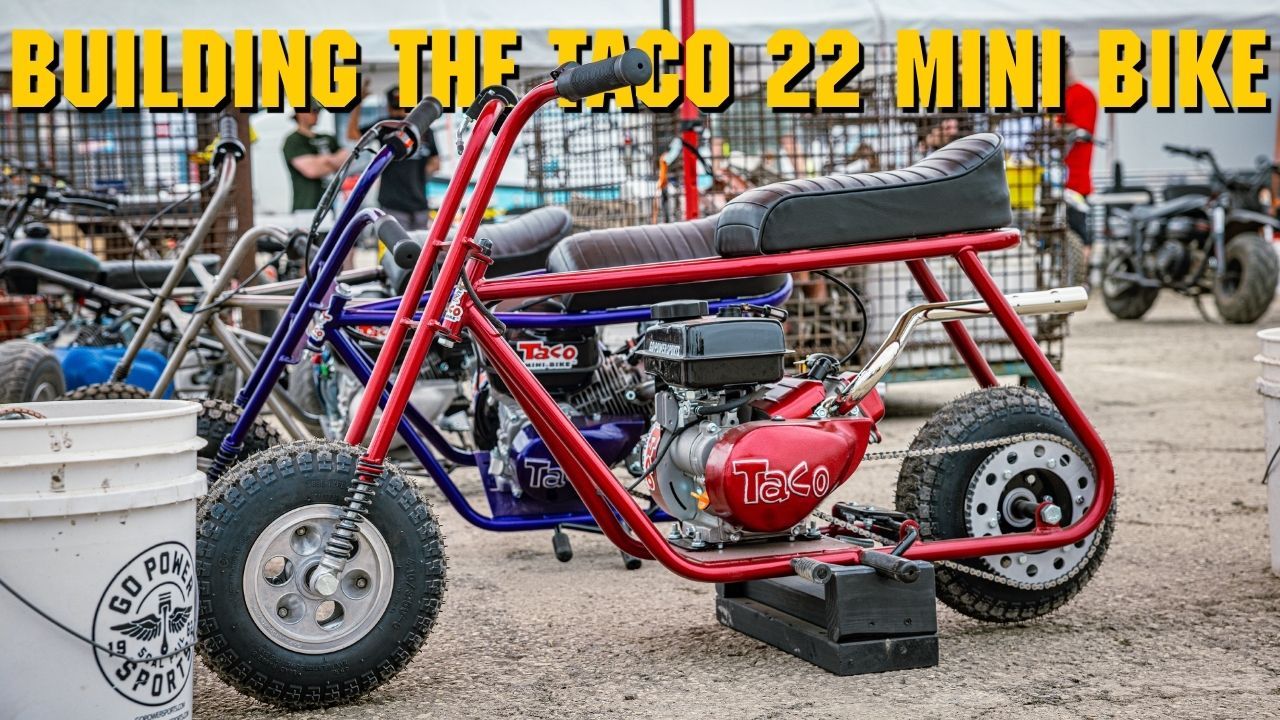

A red and blue mini bike in a workshop setting.

🛠️ TACO 22 ASSEMBLY MANUAL: STEP-BY-STEP GUIDE

Welcome to the ultimate garage project! This guide will walk you through the complete assembly of your GoPowerSports Taco 22 Mini Bike. Work carefully, follow the steps in order, and you will have a track-ready machine in no time.

Tools Required for Assembly

Before opening your hardware bags, ensure you have the following tools ready:

  • Standard & Metric Socket Set (3/8", 7/16", 1/2", 9/16", 5/8", 10mm, 12mm)
  • Standard & Metric Wrench Set
  • Allen Wrench / Hex Key Set
  • Needle Nose Pliers & Wire Cutters
  • Flathead and Phillips Screwdrivers
  • Rubber Mallet
  • Blue Threadlocker (Loctite)
  • Zip Ties
  • 10W-30 Motor Oil & Fresh Unleaded Gasoline

📦 Phase 1: Unboxing & Preparation

  1. Inventory Check: Carefully remove all components from the packaging. Group your hardware (bolts, nuts, washers, spacers) into distinct piles. Keep the engine components completely separate from the frame hardware.
  2. Frame Positioning: Place the bare Taco 22 frame on a sturdy workbench or a flat, elevated crate. Having the frame off the ground makes mounting the suspension and wheels significantly easier.

🛑 Phase 2: Front Fork & Steering Assembly

  1. Insert the Bushings: Locate the steering neck on the front of the frame. Press the provided flanged metal bushings into the top and bottom of the steering neck. If they are tight, gently tap them in with a rubber mallet.
  2. Mount the Front Fork: Slide the front fork assembly over the steering neck, aligning the mounting holes.
  3. Install the Steering Bolt: Drop the main steering bolt down through the top of the fork plate, through the internal neck bushings, and out the bottom.
  4. Secure the Fork: Place a washer and the nylon lock nut onto the bottom threads of the steering bolt. Tighten this down using a socket and wrench.
    Crucial Note: Do not over-tighten. The forks must be able to pivot smoothly left and right without binding.

🛞 Phase 3: Wheel & Brake Installation

Rear Wheel & Brake:

  1. Attach the Sprocket: Lay the rear wheel flat. Align your rear sprocket with the mounting hubs on the wheel. Insert the provided bolts, add a single drop of Blue Threadlocker to each, and tighten them down securely in a star pattern to ensure even tension.
  2. Mount the Brake Assembly: Slide the brake drum or disc brake rotor onto the wheel assembly on the side opposite of the sprocket.
  3. Install the Rear Wheel: Lift the rear of the frame. Slide the rear axle bolt partially through the frame bracket. Slide the appropriate wheel spacer onto the axle, then roll the rear wheel into the frame. Push the axle all the way through the wheel hub, add the final spacer on the other side, and push the axle through the opposite frame bracket. Secure loosely with a washer and lock nut.

Front Wheel:

  1. Position the Front Wheel: Roll the front wheel between the front forks.
  2. Insert the Axle & Spacers: Slide the front axle through the right fork leg, add a spacer, pass it through the wheel hub, add the second spacer, and push it through the left fork leg.
  3. Tighten Axles: Secure the front axle with a washer and lock nut. Once both wheels are in place, go back and fully tighten both the front and rear axles. Spin both wheels by hand to ensure they rotate freely without grinding.

⚙️ Phase 4: Engine Preparation & Mounting

  1. Position the Engine: Lift your engine and place it onto the flat mounting plate in the center of the frame.
  2. Insert Mounting Bolts: Drop the four engine mounting bolts through the base of the engine block and the slots on the frame plate. Place washers and nylon lock nuts on the bottom threads underneath the plate.
  3. Keep it Loose: Hand-tighten the nuts for now. You must leave the engine loose enough to slide forward and backward to align the chain in the next step.

⛓️ Phase 5: Clutch & Chain Alignment

  1. Install the Clutch: Slide the centrifugal clutch onto the engine's output shaft. Ensure the teeth of the clutch align perfectly straight with the teeth on your rear wheel sprocket.
  2. Secure the Clutch: Insert the metal keyway into the slot on the shaft, slide on the retaining washer, and tighten the center bolt securely into the end of the crankshaft to lock the clutch in place.
  3. Measure and Cut the Chain: Wrap your chain around the rear sprocket and the front clutch. Pull it tight to determine exactly where it needs to be broken. Use a chain breaker tool to remove the excess links.
  4. Install the Master Link: Connect the two ends of the chain using the provided master link.
    Crucial Note: Ensure the closed end of the master link clip is facing the direction of chain rotation. This prevents the clip from popping off while riding.
  5. Tension the Chain: Pull the engine straight forward on its mounting plate until the chain has about 1/2-inch to 3/4-inch of upward/downward play (slack).
  6. Lock Down the Engine: Once the chain tension is correct and the sprockets are perfectly aligned, fully tighten the four engine mounting bolts underneath the frame.

🕹️ Phase 6: Handlebars & Controls

  1. Mount the Handlebars: Place the handlebars into the mounting clamps on the top fork plate. Adjust them backward or forward to your preferred riding angle, then tighten the top clamp bolts evenly.
  2. Install the Grips: Slide the rubber grip onto the left handlebar. If it is tight, a small amount of hairspray or soapy water inside the grip will act as a lubricant and then dry securely like glue.
  3. Install the Brake Lever: Slide the brake lever assembly onto the left handlebar (or right, per your preference) and tighten the mounting screw.
  4. Install the Throttle Assembly: Slide the twist-throttle assembly onto the right handlebar. Push it all the way on, then back it off 1/8th of an inch so the rubber grip doesn't rub against the metal handlebar end, and tighten the set screw.

🪢 Phase 7: Cable Routing

Throttle Cable:

  1. Route to the Engine: Run the throttle cable from the handlebar down the frame, avoiding sharp bends or moving parts like the exhaust or chain. Secure it loosely to the frame with zip ties.
  2. Connect to Linkage: Feed the inner wire through the engine's throttle linkage. Loosen the nut on the throttle arm, slide the wire through, pull it taut (but not enough to open the butterfly valve), and tighten the nut. Ensure the twist throttle snaps back cleanly when released.

Brake Cable:

  1. Route to the Rear Brake: Run the brake cable from the hand lever down the frame to the rear brake assembly.
  2. Connect and Tension: Feed the cable through the anchor block on the brake assembly and attach the inner wire to the brake actuator arm. Pull the wire tight enough to remove slack, but not tight enough to engage the brakes, and lock it down.
  3. Test the System: Squeeze the brake lever to ensure the rear wheel locks up effectively and the lever returns smoothly. Snip any excess wire with wire cutters and crimp a cap onto the end to prevent fraying.

💺 Phase 8: Seat Installation

  1. Position the Seat: Place the custom Taco 22 seat onto the upper frame brackets.
  2. Secure the Hardware: Thread the mounting bolts upward through the frame brackets and directly into the threaded inserts on the bottom of the seat. Tighten securely.

🏁 Phase 9: Pre-Ride Checklist

Before firing up your newly built Taco 22, you must complete these steps to prevent severe engine damage and ensure rider safety:

  1. Add Engine Oil: Place the bike on a level surface. Remove the dipstick and fill the engine crankcase with 10W-30 motor oil until it reaches the bottom threads of the fill hole (typically 12-16 oz depending on the exact engine). Do not run the engine dry!
  2. Add Fuel: Fill the gas tank with fresh, unleaded gasoline.
  3. Check Tire Pressure: Check both tires with a gauge and inflate to the recommended PSI printed on the sidewall.
  4. Final Hardware Check: Do a final walk-around. Put a wrench on your axle nuts, engine bolts, handlebar clamps, and steering neck bolt to ensure nothing was left loose.
