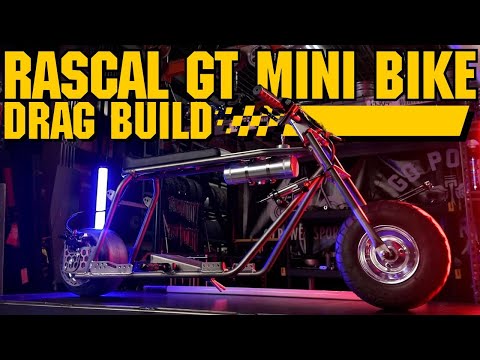

Rascal GT Mini Bike Drag Racing Kit

Build a lightweight, purpose-designed mini bike drag racer with premium aluminum wheels, precision billet hubs, hydraulic braking, drag-style controls, and your choice of rear slick tire.

A Lightweight Foundation for Mini Bike Drag Racing

The Rascal GT Mini Bike Drag Racing Kit is a premium DIY roller kit created for builders who want a lightweight, performance-oriented starting point. The steel Rascal GT frame and fork weigh approximately 22.5 pounds combined, helping reduce chassis weight without giving up the rigid construction required for a performance build.

The Rascal GT features dual-down-tube construction, a honeycomb-style weight-relief design, multiple foot-peg mounting positions, an elevated engine plate, and integrated mounting locations for the included steering stabilizer, aluminum top plate, fuel tank, chain roller, and other racing components.

Premium Douglas DWT aluminum wheels and GPS Racing billet hubs help create a lightweight, true-running wheel package. The included hydraulic rear brake, brake disc, low drag handlebars, billet thumb throttle, and ducktail seat complete the kit’s drag-oriented riding position.

Available Frame Finishes

• Glossy Black Powder Coat: Free limited-time upgrade available while supplies last.
• Bare Steel: Ready for your own paint, powder coat, clear coat, or custom finish.

The powder-coat option applies to the Rascal GT frame and fork. Aluminum components, hardware, brackets, axle hangers, and other supplied parts retain their standard finishes unless otherwise stated.

Choose Your Rear Slick Tire

• 10.5 x 4.50-6 Slick Tire: A lower-profile option for a compact drag-bike stance.
• 13 x 5-6 Slick Tire: A taller and wider rear-tire option.

Rear tire size changes the finished bike’s ride height, effective gearing, ground clearance, and available component clearance. Select your rear tire based on your intended gearing and race configuration.

Rascal GT Drag Kit Features

• Lightweight steel frame and fork weighing approximately 22.5 lb combined
• Dual-down-tube frame construction
• Honeycomb-style weight-relief design
• Elevated engine plate for additional drivetrain clearance
• Multiple foot-peg positions for drag or custom rider placement
• 25.25" drag handlebars for a forward-leaning riding position
• Billet thumb-throttle system with two cable options
• Premium Douglas DWT aluminum front and rear wheels
• Precision GPS Racing billet wheel hubs
• 1/2" front and rear axle configuration
• Hydraulic rear brake with brake disc
• Adjustable steering stabilizer
• 18.5" ducktail drag seat
• Selectable rear slick tire

What’s Included

Frame and Steering Components

• Rascal GT Mini Bike Frame and Fork
• 1/2" x 6.5" Rascal/Rascal GT Neck Bolt Kit
• Neck bushings, washers, and associated steering hardware
• 7/8" Short Billet Handlebar Risers
• 25.25" Mini Bike Drag Handlebars
• Adjustable Mini Bike Steering Damper/Stabilizer

Seat and Controls

• 18.5" Ducktail Drag-Style Mini Bike Seat
• 7/8" Billet Thumb Throttle Kit
  • Billet thumb-throttle assembly
  • Clamp-on handlebar grips
  • Two 46" throttle cables with different cable-throw lengths
  • Throttle-adjustment hardware
• Engine kill switch

Throttle compatibility: The two supplied throttle cables are intended to support several common slide-carburetor sizes. Final compatibility and throttle travel depend on the carburetor selected. The installer must set the throttle stop correctly and verify that the throttle closes automatically when released.

Front Wheel and Tire Components

• Aluminum 6" Front Wheel
• Front Drag Tire
• GPS Racing Billet Front Hub
• 1/2" ID Front Wheel Bearings
• 1/2" Front Axle and Lock Nut
• Front Wheel Spacers
• Front Wheel Mounting Hardware

Rear Wheel, Tire, and Axle Components

• GPS Racing Billet Rear Wheel Assembly
  • 6" x 5" Aluminum Rear Wheel
  • GPS Racing Double-Flange Billet Wheel Hubs
  • Six-hole mini bike brake disc
  • Universal split-sprocket adapter
  • Wheel, brake-disc, and sprocket-adapter hardware
• Your selected 10.5 x 4.50-6 or 13 x 5-6 Rear Slick Tire
• (4) 1/2" ID x 1-3/8" OD Rear Wheel Bearings
• Custom 1/2" Rear Axle and Nut
• 12mm/1/2" Rascal GT Axle Hangers
• Rear Axle Spacers and Alignment Shims

Rear sprocket is not included. Select the sprocket size and chain pitch that match your chosen clutch or torque converter and desired gearing.

Brake Components

• Left-Hand Hydraulic Brake Assembly
• Hydraulic Brake Caliper
• Hydraulic Brake Lever and Line
• Six-Hole Rear Brake Disc
• Brake Mounting Hardware and Alignment Washers

Fuel-Tank and Top-Plate Components

• 10" Aluminum Cylinder Fuel Tank
  • Approximately 3" diameter
  • Approximately 10" long
  • Approximately 0.31-gallon capacity
  • 1/8" NPT center outlet
  • Vented cap
• Rascal GT Aluminum Top Plate
• Fuel-Tank Mounting Brackets and Bands
• Top-Plate and Tank Mounting Hardware

Additional Chassis Components

• Foldable Billet Foot Pegs
• Rascal GT Chain Roller and Mounting Hardware
• Long Mini Bike Kickstand with Spring and Hardware
• Wheel, axle, seat, brake, tank, and chassis mounting hardware

Frame Specifications

• Overall Frame Length: 41"
• Overall Frame Width: 10"
• Frame Height: 16.25" to the top of the seat tube
• Frame and Fork Weight: Approximately 22.5 lb combined
• Standard Drag-Kit Axle Configuration: 1/2"
• Frame Material: Steel
• Finish Options: Bare Steel or Glossy Black Powder Coat

Required Components—Not Included

• Small-Block Performance Engine
• Engine mounting hardware
• Centrifugal or Racing Clutch or a compatible Torque Converter
• Drive Chain and Master Link
• Rear Drive Sprocket
• Fuel Line
• Fuel Filter and Shut-Off Valve—recommended
• Exhaust Header or Muffler
• Engine Oil
• Air Filter and Carburetor if not supplied with the selected engine

Recommended Engine and Drivetrain Components

• Tillotson 225cc Performance Engine
• Header Pipe, Rascal GT, Center Exit Trumpet
• Mini Bike Racing Disc Clutches
• Jugg-A-Verter Super 30 Series Torque Converter Kit
• #41/420 Split Sprocket
• #35 Split Sprocket
• RLV #420 High-Performance Racing Chain
• Rascal GT Center-Exit Racing Header Pipe
• Aluminum Oil Catch Tank

Choose one drivetrain: Install either a compatible clutch or torque converter. Both are not used together. Your clutch or torque converter, chain pitch, sprocket, axle alignment, and gearing must all be selected as a compatible system.

Assembly Information

View the Complete Rascal GT Drag Kit Assembly Manual

This is a hands-on builder’s kit. Wheel preparation, drilling, bearing installation, component alignment, brake adjustment, throttle adjustment, and other assembly work are required.

Recommended Assembly Tools

• Drill with 5/16" drill bit
• Drill press—recommended for wheel-mounting holes
• Socket and wrench set
• 3/4" or 19mm wrenches
• 6mm Allen wrench
• Valve-stem tool
• Deburring tool or round file
• Bearing press or suitable bearing-installation tools
• Air compressor and tire chuck
• Tire-mounting lubricant
• Measuring tape or ruler
• Blue thread-locking compound where specified
• Safety glasses

Things to Know Before Ordering

• This is an unassembled roller kit that requires tools and mechanical ability.
• The wheel mounting holes must be drilled from 1/4" to 5/16" when using the supplied 5/16" mounting hardware.
• Bearings must be installed straight and fully seated in their hubs.
• The steering stabilizer must be properly centered and adjusted before operation.
• The hydraulic brake system may require alignment, bleeding, and adjustment during assembly.
• The rear sprocket and chain must be selected to match the intended chain pitch and gearing.
• Always mock up the engine and drivetrain before painting a bare-steel frame.
• Minor drilling, filing, deburring, shimming, or adjustment may be required.
• Powder coat may need to be carefully removed from threaded holes, grounding points, bearing surfaces, or close-tolerance mounting locations.
• Verify wheel, axle, sprocket, chain, brake, steering, and throttle alignment before every use.
• Adult signature is required upon delivery.
• Free shipping applies only to the contiguous 48 United States. Contact Go Power Sports before ordering from another location.

Closed-Course Racing and Safety Disclaimer

This product is intended to serve as the foundation for a custom competition-style mini bike. Final safety, performance, and suitability depend on the engine, drivetrain, gearing, assembly, modifications, rider, and operating conditions.

Mini bike drag racing and other powersports activities involve the risk of serious injury or death. Always wear a properly fitted helmet, eye protection, gloves, protective clothing, and any additional equipment required by the racing facility or sanctioning organization.

Have the completed mini bike inspected by a qualified person before operation. Test the throttle return, engine stop switch, hydraulic brake, steering, stabilizer, wheels, axles, drivetrain, and all fasteners before every run.

This product is not intended for use on public roads. Operate only on a properly prepared closed course or in another authorized area, and follow all applicable laws and facility rules.

Limited-Time Finish Offer: The free Glossy Black Powder-Coat upgrade is available only while supplies last and may be discontinued without notice.
