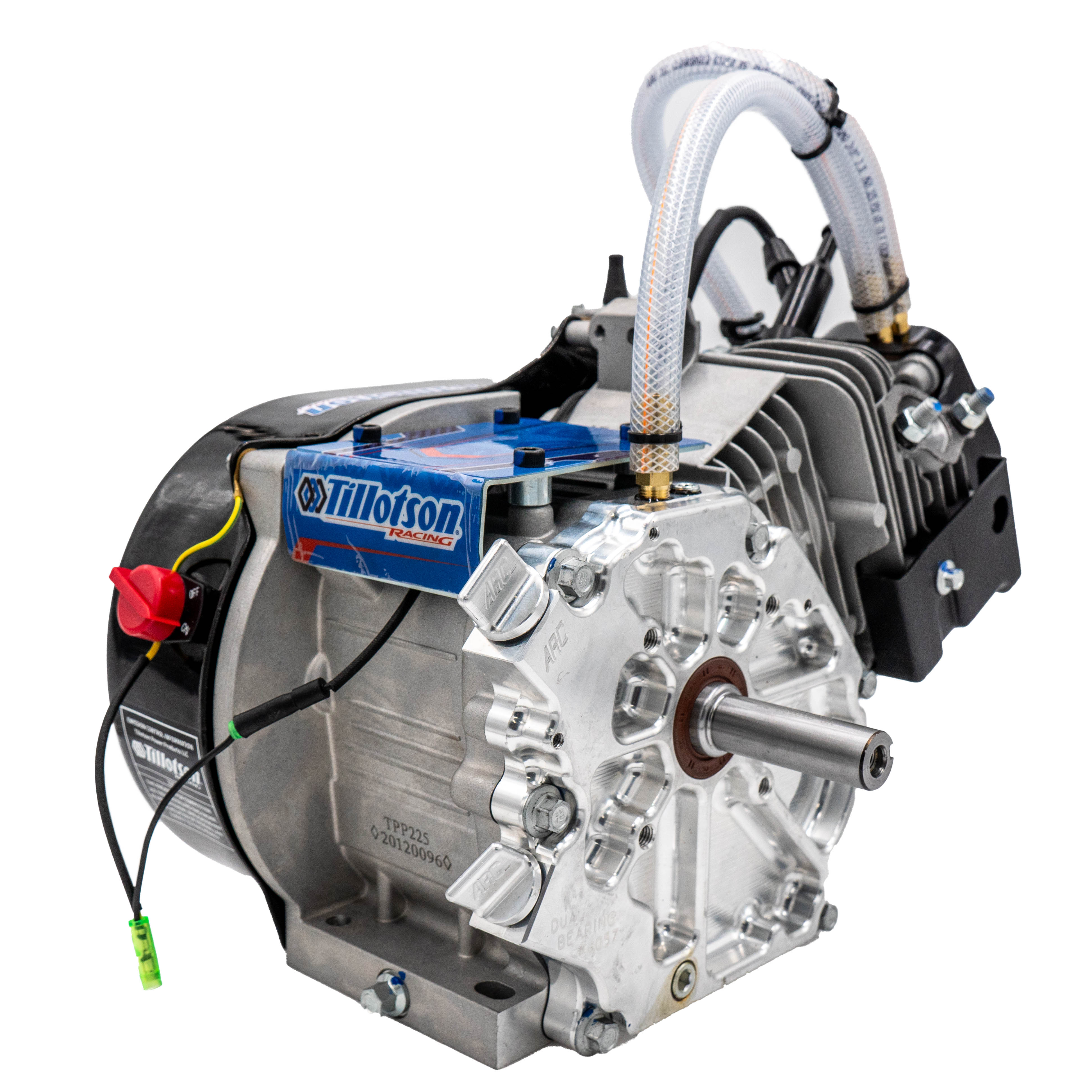

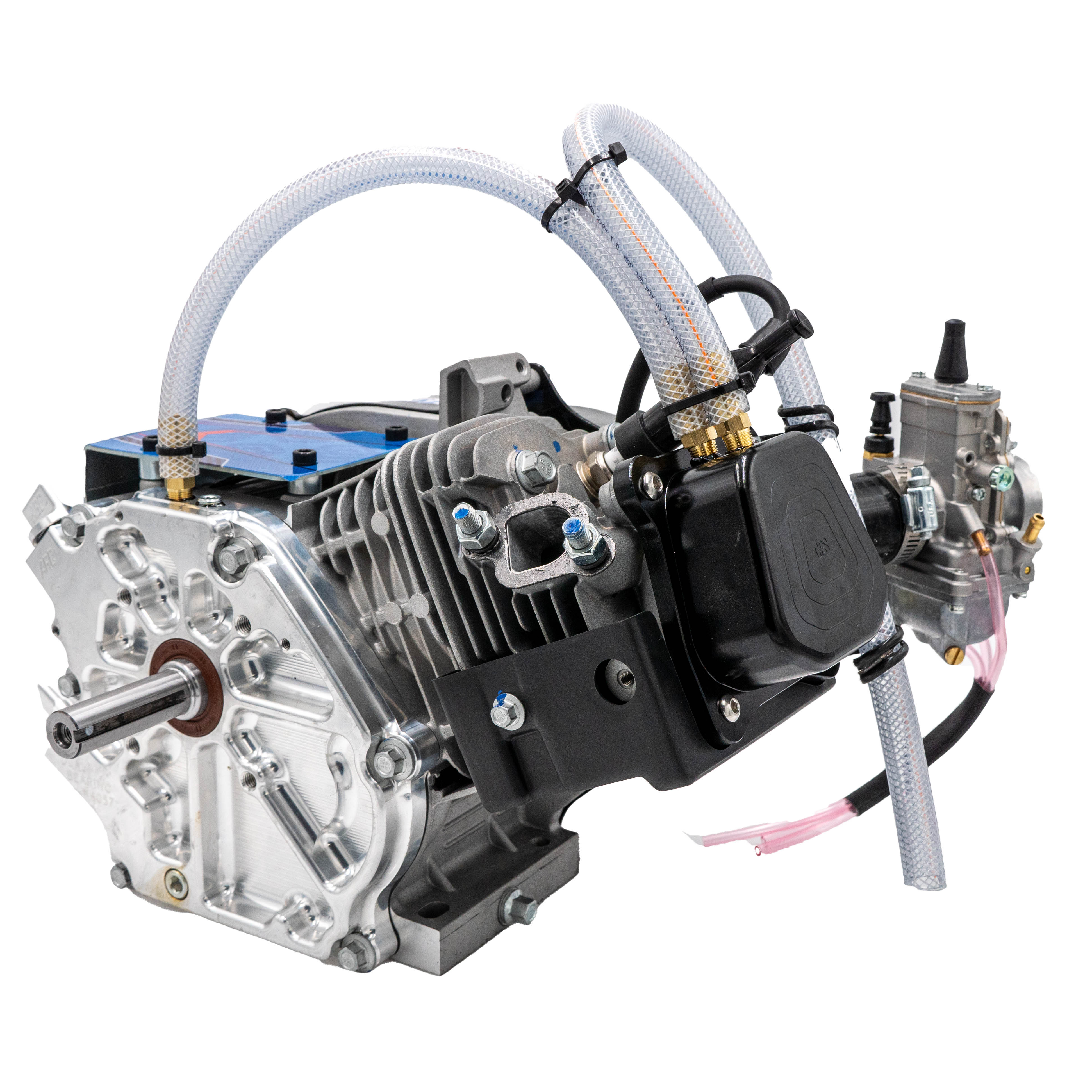

Stage 5 Tillotson Performance Racing Engine

Stage 5 236cc / 14.5CI Tillotson Performance Racing Engine:

• Governor Removed
• Performance High Flow Air Filter
• Blueprinted Methanol 28mm Mikuni Flat Slide Carburetor - 460 Main Jet / 55 Pilot Jet
• Upgraded Billet Flywheel
• Upgraded Billet Rod
• Stroker Crank
• Upgraded 308 Racing Cam
• Upgraded 32/28mm Big Valve Fully Ported and Milled Racing Head
• Upgraded Light Weight Valve Train
• Upgraded Valve Springs
• Upgraded Gage Roller Rockers
• Everything has been checked and tweaked for max performance

This engine screams! Very reliable as it is easy on the valve train but makes huge power all the way to 10,000 rpm. This engine goes way beyond our Stage 4. This has all the tricks added to make this an absolute BEAST engine.

Break In & Dyno

• The Break In option includes:
• Setting the valve lash to make sure you get the most lift for more power
• Setting the coil for optimum spark and clearance for less drag
• Check the the throttle linkage is ready out of the box.  Setting it so you get the most rpm and making sure it operates smoothly
• Do a once over on the whole engine to make sure nothing is wrong with it before being shipped.
• We run your engine with gas/oil through 3 heat cycles, then drain these liquids from the engine for shipping.
• The Break In & Dyno option includes:
• All of the options above
• Run the engine on our Dyno and make changes for optimal performance

This is the best off the shelf racing engine available on the market!

This engine is built to use an external starter box. (19mm)

This engine is not for inexperienced racers. This engine is blue printed and race ready, it is guaranteed to run but as with all racing parts there is no warranty. These engines are shipped with NO OIL. We recommend a high quality oil designed for splash systems such as Tillotson Synthetic 4-Stroke Performance Oil to provide better protection. Always keep at least 14 ounces and no more than 16 ounces of oil in the engine while in use.  M1/ Methanol Fuel only. Upgraded clutch or torque converter recommended. Purchaser assumes all liability.

Notes:

• This engine will require a break in period before running.
• This item can only be shipped within the 48 contiguous states via Standard Ground Shipping. Will ship within 5 business days.
• *Engine orders can only be shipped to card holders address.  Orders placed to be shipped to a different location will be canceled.
• No returns on this product. If you have questions about it, please call before ordering.
• Orders not in stock can take up to 30 days to build and ship
