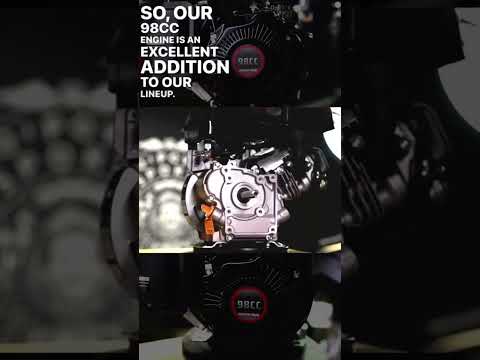

98cc Gasoline Engine for Go-Karts, Minibikes, and other Powersport projects. This 3HP, OHV engine is standard on the Coleman 100 series minibikes. Recoil start, 5/8" crankshaft, and throttle cable hook up are standard. Great for young riders or those who want to cruise around. The engine's bolt pattern matches the same as 6.5HP Clone engines.
INTRODUCTORY PRICE FOR LIMITED TIME -- $79.95
- Displacement: 98cc
- Horsepower: 3HP
- RPM Max: 3600
- Start Type: Recoil
- Shaft Diameter: 5/8" (16mm)
- Keyway: 3/16"
- Model 156F-1
- Single Cylinder
- Forced Air Cooling
- Rated Power 1.8Kw/3600rpm
- Max Torque 4.5N.m/2500rpm
- Idle Speed 1600 +/-150
- Bore x Stroke 56x40
- Splash Lubrication
- Rotation Anti-Clockwise from PTO Side
- Dimensions in mm 300 length x 270 Width x 310 Height
Our Coleman Torque Converter Kit will fit on this engine for more torque.
2 Reviews Hide Reviews Show Reviews
Found out last momment after i deleted governor that the engines cam gear was stripped out the box.i hope the manufacturer goes to metal cam gear for this very reason.i found a fix for it thanks to a reliable knowledgeable freind now i have to wait for my fix
Great Power for such a small...
I used this engine on an old doodlebug frame that used to have the 97cc flathead on it. The engine is great for my 11yo nephew, and it will even pull me (170lbs) around a field without much of a struggle.
