Rascal GT Mini Bike Cruiser Kit

Build a lightweight, full-size custom mini bike cruiser with premium wheels, hydraulic braking, your choice of tires and seat, and an American-made Rascal GT frame.

Build Your Own Rascal GT Cruiser

The Rascal GT Mini Bike Cruiser Kit gives you the major chassis, steering, wheel, tire, brake, fuel-tank, seating, and control components needed to build a unique custom cruiser. The kit is designed for garage builders who want the satisfaction of assembling their own mini bike while still having the freedom to select their engine and drivetrain.

The Rascal GT’s lightweight steel frame features a rigid dual-down-tube design, multiple foot-peg mounting positions, and an elevated engine plate that provides room for either a centrifugal clutch or compatible 30 Series torque converter setup.

No welding is normally required to assemble the supplied kit components. Everyday hand tools, a drill, and basic mechanical experience are required.

Available Frame Finishes

• Glossy Black Powder Coat: Free limited-time upgrade available while supplies last.
• Bare Steel: Ready for your own paint, powder coat, clear coat, or custom finish.

The powder-coat option applies to the Rascal GT frame and fork. Aluminum components, hardware, brackets, and other supplied parts retain their standard finishes unless otherwise stated.

Choose Your Seat

• 18.5" Thin Drag Seat with Ducktail
• 18.5" Cruiser Seat

Choose Your Tires

• 130/90-10 Street/Flat Track Tires, SY-S017
• 110/80-10 Street Tires, K413
• 4.00-10 Trials Tires, IRC-191
• 3.50-10 Universal Tires
• 3.00-10 Street Tires, MB90

Tire dimensions and tread patterns affect the completed bike’s ride height, stance, handling, and available clearance. Review your intended riding conditions before selecting your tire option.

Rascal GT Cruiser Kit Features

• Lightweight steel Rascal GT frame and fork
• Dual-down-tube frame construction
• Honeycomb-style weight-relief design
• Elevated engine plate for additional drivetrain clearance
• Multiple foot-peg mounting positions
• 12" vintage-style handlebars
• 10" machined aluminum front and rear wheels
• Selectable cruiser or drag-style seat
• Selectable street, universal, or trials tires
• Rear hydraulic disc brake system
• Universal mini bike fuel tank
• Foldable billet foot pegs
• No welding normally required for supplied components

What’s Included

Frame and Steering Components

• Rascal GT Mini Bike Frame and Fork
• 1/2" x 6.5" Rascal/Rascal GT Neck Bolt Kit
• 7/8" Short Billet Handlebar Risers, Silver
• 12" Vintage Mini Bike Handlebars
• (2) 7/8" Plastic Handlebar Caps

Fuel and Control Components

• UniTank Universal Mini Bike Fuel Tank
• Mega Moto Twist Throttle and Grip Assembly
• 52" Mini Bike Throttle Cable, Mikuni Style
• Mini Bike Engine Stop Switch

Seat

• Your selected 18.5" Rascal GT seat:
  • Thin Drag Seat with Ducktail; or
  • Cruiser Seat

Rear Wheel and Drivetrain Components

• 10" GPS Machined Aluminum Rear Wheel
  • Rear hub
  • 6201 wheel bearings
  • Brake-disc spacer
  • Sprocket spacer
  • Mounted brake disc
• Universal Sprocket Adapter
• #41/420 Split Sprocket—52T or 62T
• M12 x 280 Rear Axle Bolt and Nut
• Rear axle spacers:
  • 2.5" right-side spacer
  • 2.2" left-side spacer
  • Spacer shims/washers

Front Wheel Components

• 10" GPS Machined Aluminum Front Wheel
  • Front hub
  • 6201 wheel bearings
  • Stainless-steel wheel hardware
• M12 x 225 Front Axle
• Front axle spacers:
  • 2.3" spacer
  • 1.8" spacer

Brake, Foot-Peg, and Chassis Components

• Rascal GT Big Brake Adapter
• Mega Moto B212 Left-Hand Rear Hydraulic Brake Assembly
• Foldable Billet Foot Pegs, Smooth Knurl—Silver
• Long Mini Bike Kickstand Kit
• Rascal GT Chain Roller

Tires, Hardware, and Finishing Items

• Your selected pair of 10" tires
• Hardware pack containing:
  • (3) Seat bolts
  • (3) Sprocket-adapter bolts
  • (2) Big-brake-adapter bolts and serrated nuts
  • (2) Brake-caliper bolts
  • (2) Brake-caliper spacers
  • (4) Wheel spacers
  • (8) Rear-wheel spacer shims/washers
• Rascal GT Sticker

Rascal GT Frame Specifications

• Frame and Fork Weight: Approximately 22.5 lb combined
• Overall Frame Length: 41"
• Overall Frame Width: 10"
• Frame Height: 16.25" to the top of the seat tube
• Axle Size: 12mm
• Frame Material: Steel
• Finish Options: Bare Steel or Glossy Black Powder Coat

Engine and Drivetrain Components Required

To complete the mini bike, you will need to select an engine and either a centrifugal-clutch or torque-converter drivetrain. Recommended components include:

• Tillotson 212cc Hemi Pull-Start Engine
• Rascal GT Center-Exit Header Pipe with Trumpet
• Jugg-A-Verter Super 30 Series Torque Converter Kit
• 10T GPS Centrifugal Clutch, 3/4" Bore, #41/420
• RLV #420 High-Performance Racing Chain
• Tillotson Synthetic 4-Stroke Performance Oil

Choose one drivetrain: Install either a compatible centrifugal clutch or torque converter. Both are not used together.

What Is Not Included

• Engine
• Exhaust header or muffler
• Centrifugal clutch or torque converter
• Drive chain
• Engine oil
• Fuel line unless otherwise stated
• Optional performance-engine components
• Tools required for assembly

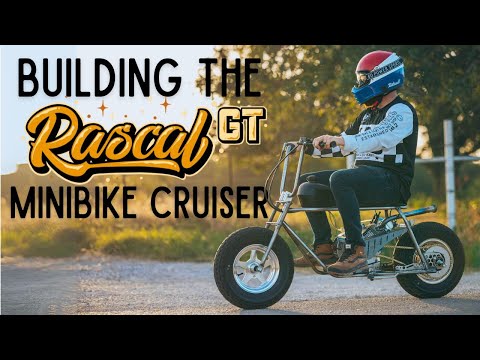

Assembly Instructions

View the Rascal GT Cruiser Kit Assembly Manual

Tools Required for Assembly

• Wrenches and/or sockets:
  • 3/4" or 19mm
  • 18mm
  • 17mm
  • 14mm
  • 13mm
  • 12mm
  • 7/16"
  • 10mm
  • 8mm
• Crescent wrench if multiple wrenches are unavailable
• Metric Allen-wrench set:
  • 8mm
  • 6mm
  • 4mm
• Phillips-head screwdriver
• Cutters
• Round file or deburring tool
• Hammer and punch
• Valve-stem puller or pliers
• Drill
• 1/2" drill bit
• 1/4" drill bit
• Impact driver or impact wrench—optional

Things to Know Before Ordering

• Apart from the listed frame-finish, seat, tire, and sprocket choices, the kit is sold as configured and substitutions are not available.
• This is an unassembled kit that requires tools, mechanical ability, and final adjustments.
• Always mock up and verify all components before painting a bare-steel frame.
• Minor filing, drilling, deburring, spacing, or other adjustments may be required during assembly.
• On powder-coated frames, coating may need to be carefully removed from threaded holes, grounding points, bearing surfaces, or close-tolerance mounting areas.
• Wheel and hub fasteners should be inspected and properly tightened during assembly. Thread-locking compound may be required where specified in the instructions.
• Verify steering, throttle, brake, axle, chain, sprocket, and drivetrain operation before every ride.
• Adult signature is required upon delivery.
• Free shipping applies only to the contiguous 48 United States. Contact Go Power Sports before ordering from another location.

Safety Disclaimer

Assembly and use of mini bikes, go-karts, and powersports products involve risks commonly associated with motorized recreational activities. Always wear appropriate safety equipment, including a properly fitted helmet, gloves, eye protection, and protective clothing.

By assembling or using this product, the purchaser and rider voluntarily assume the risks associated with its assembly, modification, maintenance, and operation. Go Power Sports shall not be responsible for injuries or damages resulting from improper assembly, modification, maintenance, or use.

This product is not intended for use on public roads. Follow all applicable laws and operate only in authorized riding areas away from traffic, pedestrians, and bystanders.

Limited-Time Finish Offer: The free Glossy Black Powder-Coat upgrade is available only while supplies last and may be discontinued without notice.
