Rear Housing

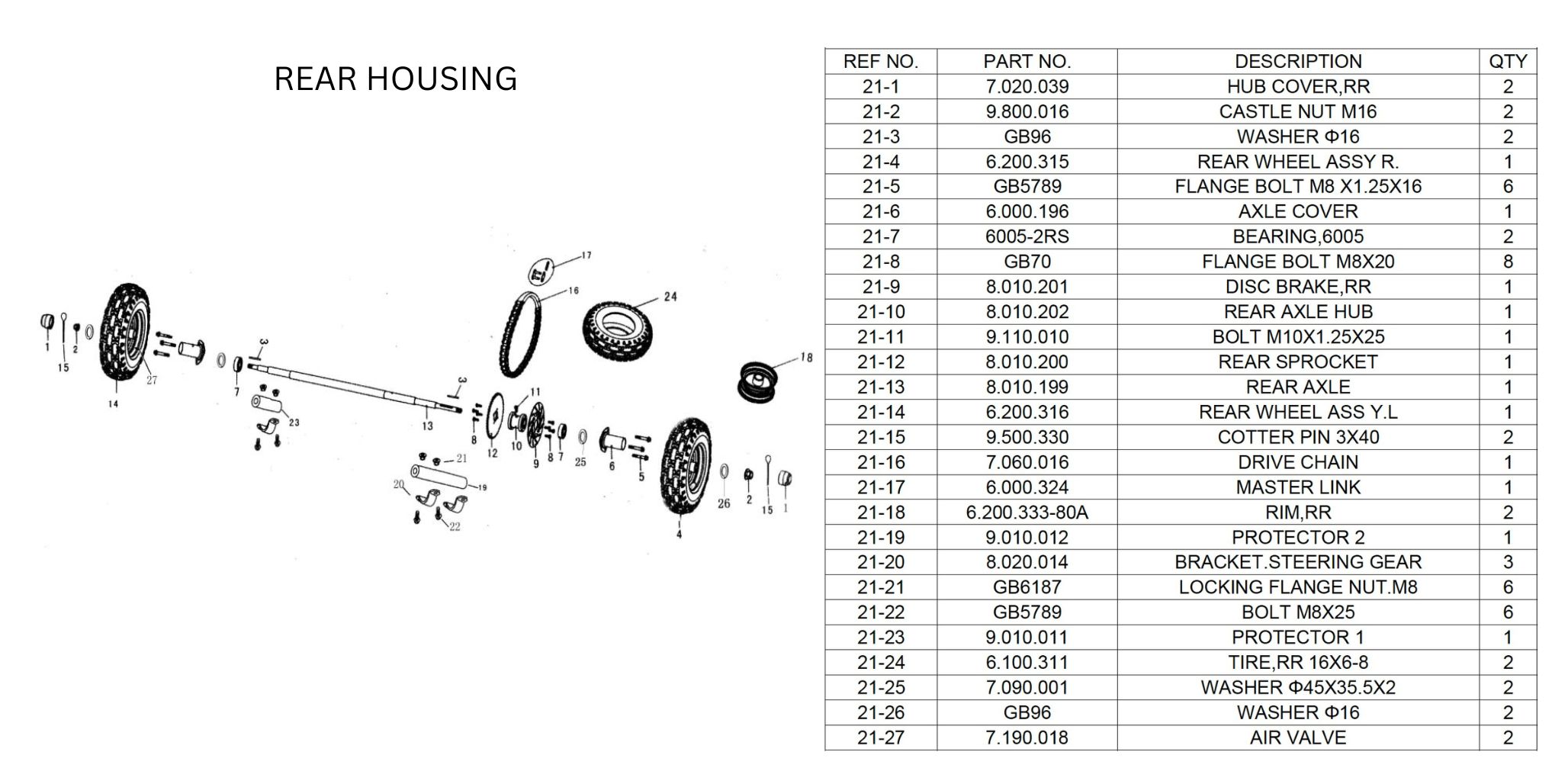

FIG. 21 REAR HOUSING


REFNO.

PARTNO.

DESCRIPTION

21-1

7.020.039

HUB COVER,RR

21-2

9.800.016

CASTLE NUT M16

21-3

GB96

WASHER Φ16

21-4

6.200.315

REAR WHEEL ASSYR.

21-5

GB5789

FLANGE BOLT M8 X1.25X16

21-6

6.000.196

AXLE COVER

21-7

6005-2RS

BEARING 6005

21-8

GB70

FLANGE BOLT M8X20

21-9

8.010.201

DISC BRAKE,RR

21-10

8.010.202

REAR AXLE HUB

21-11

9.110.010

BOLT M10X1.25X25

21-12

8.010.200

REAR SPROCKET

21-13

8.010.199

REAR AXLE

21-14

6.200.316

REAR WHEEL ASS Y.L

21-15

9.500.330

COTTER PIN 3X40

21-16

7.060.016

DRIVE CHAIN

21-17

6.000.324

MASTER LINK

21-18

6.200.333-80A

RIM,RR

21-19

9.010.012

PROTECTOR 2

21-20

8.020.014

BRACKET STEERING GEAR

21-21

GB6187

LOCKING FLANGE NUT M8

21-22

GB5789

BOLT M8X25

21-23

9.010.011

PROTECTOR 1

21-24

6.100.311

TIRE, RR 16X6-8

21-25

7.090.001

WASHER Φ45X35.5X2

21-26

GB96

WASHER Φ16

21-27

7.190.018

AIR VALVE
