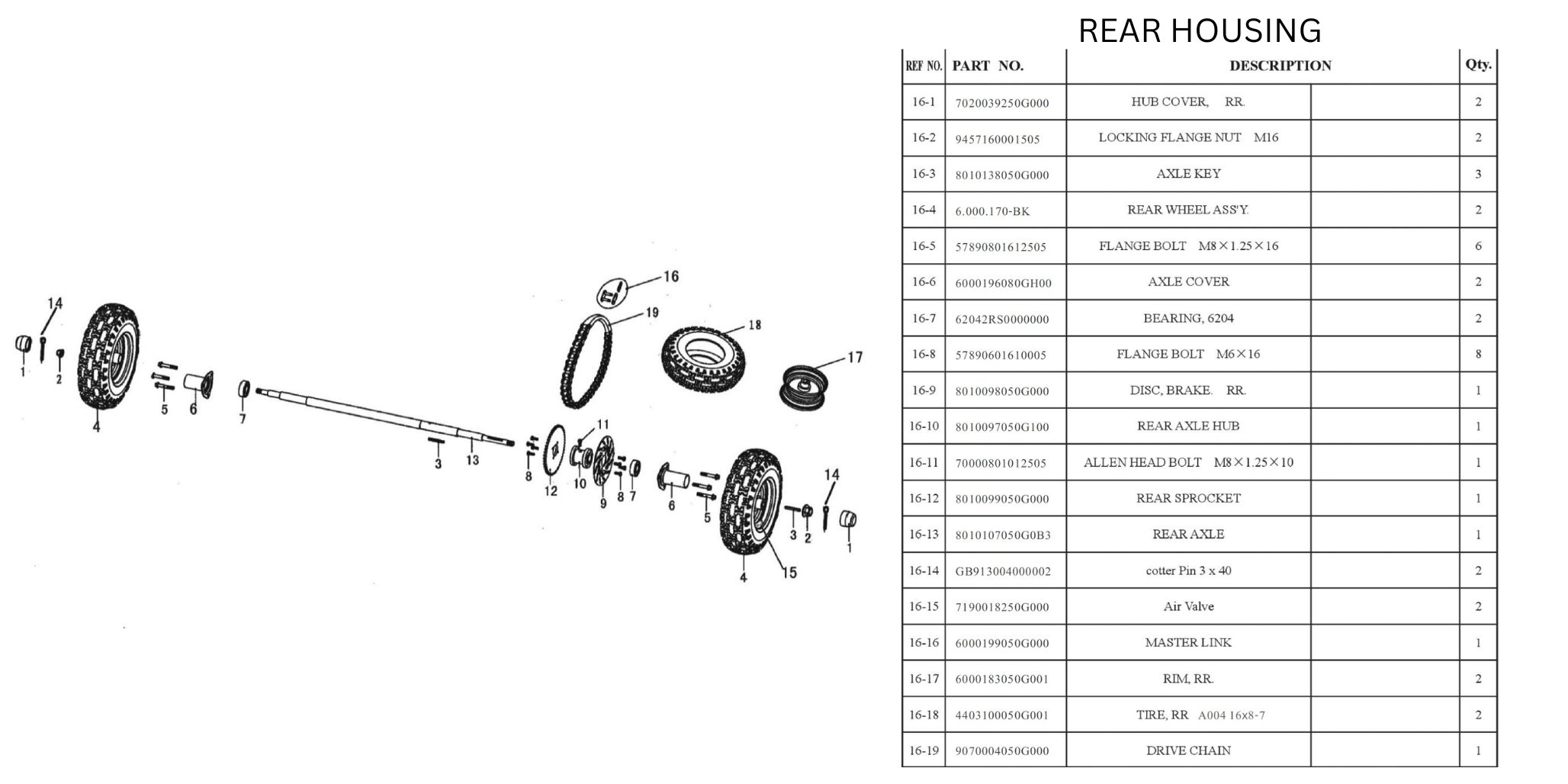

Rear Housing


Ref # Part # Description
16-1 7.020.039 HUB COVER
16-2 9.220.016  LOCKING FLANGE NUT Ml6
16-3 8.010.138  AXLE KEY
16-4 6.000.170 REAR WHEEL ASS'Y
16-5 9.108.016 FLANGE BOLT M8X 1.25 X 16
16-6 6.000.196 AXLE COVER
16-7 9.030.002 BEARING, 6204
16-8 9.106.016 FLANGE BOLT M6X16
16-9 8.010.098 DISC, BRAKE. RR
16-10 8.010.097 REAR AXLE HUB
16-11 9.129.810 ALLEN HEAD BOLT M8X l.25X 10
16-12 8.010.099 REAR SPROCKET
16-13 14-1101-00 REAR AXLE
16-14 005-3040-00 COTTER PIN 3x40
16-15 7.190.018 AIR VALVES
16-16 6.000.199 MASTER LINK
16-17 6.000.183 RIM,RR
16-18 001-136005-00 TIRE, RR 13 x5-6
16-19 9.070.004 DRIVE CHAIN
